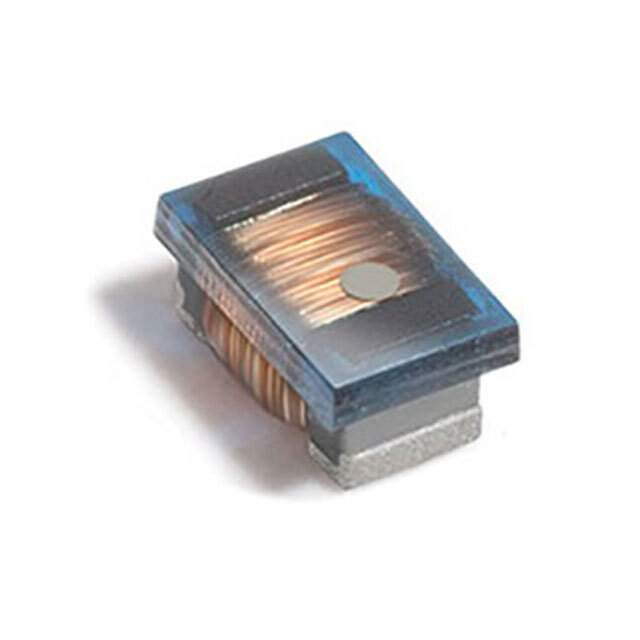

0603AF-821XJEW Real Image
Same model may have multiple batches, images only for reference.

0603AF-821XJEW

Part No 0603AF-821XJEW
Manufacturer Coilcraft
Catalog Fixed Inductors
Description FIXED IND 820NH 420MA 580MOHM SM
Datasheet
0603AF-821XJEW Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors
Features Unshielded - Inductor 580mOhm Max 0603 (1608 Metric) -
Manufacturer Coilcraft
Series 0603AF
Package Strip
Operating Temperature Range -40°C ~ 85°C
Mounting Surface Mount
Package 0603 (1608 Metric)
Case / Package 0603
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Other Part Number 2457-0603AF-821XJEW, 2457-0603AF-821XJE_, 2457-0603AF-821XJE_-ND, 2457-0603AF-821XJE_TR-ND
Quantity per package 1
Popularity High
Supply and Demand Status Balance
Win Source Part Number 904639-0603AF-821XJEW
Ultra Librarian 3D Model Ultra Librarian 0603AF-821XJEW CAD Model

Description

The 904639-0603AF-821XJEW is an unshielded inductor with a maximum resistance of 580mOhm by Coilcraft.

  • Shielding: Unshielded inductor
  • Maximum Resistance: 580mOhm
  • Mounting Type: Surface mount
  • Package: 0603 (1608 Metric)
  • Operating Temperature Range: -40°C to 85°C
  • Manufacturer: Coilcraft
  • Popularity: High
  • REACH: Unaffected
  • ECCN: EAR99
  • MSL Level: 1 (Unlimited)
  • HTSUS: 8504.50.8000
