Same model may have multiple batches, images only for reference.

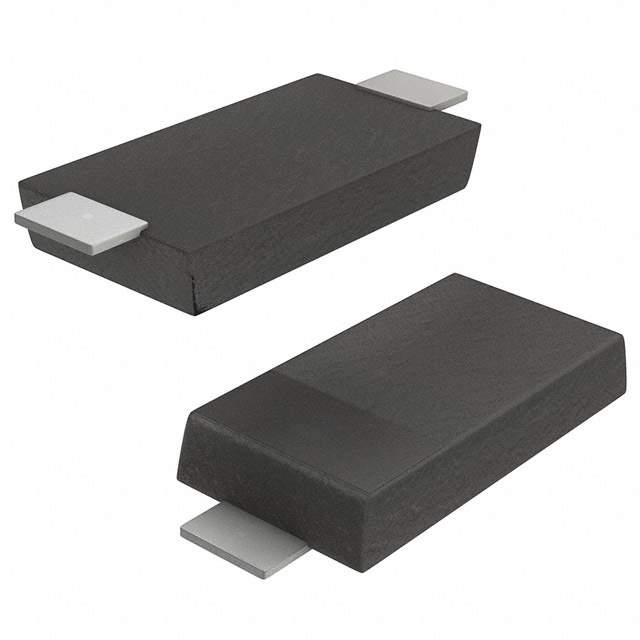

CDBP00340-G Real Image
Same model may have multiple batches, images only for reference.

CDBP00340-G

Part No CDBP00340-G
Manufacturer Comchip Technology
Catalog Diodes, Rectifiers - Single
Description DIODE SCHOTTKY 30V 30MA SOD723  /  Diode Schottky 30 V 30mA Surface Mount SOD-723
Datasheet
CDBP00340-G Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Diodes - Rectifiers - Single
Mfr Comchip Technology
Package Tape & Reel (TR)
Diode Type Schottky
Voltage - DC Reverse (Vr) (Max) 30 V
Current - Average Rectified (Io) 30mA
Voltage - Forward (Vf) (Max) @ If 370 mV @ 1 mA
Speed Small Signal =< 200mA (Io), Any Speed
Current - Reverse Leakage @ Vr 500 nA @ 30 V
Capacitance @ Vr, F 2pF @ 1V, 1MHz
Mounting SMD (SMT)
Package / Case SOD-723
Supplier Device Package SOD-723
Operating Temperature - Junction 125°C (Max)
Base Product Number CDBP00340
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0070
Other Names RB751G-40,641-1134-1,641-1134-6,CDBP00340G,641-1134-2
Standard Package 8,000
Win Source Part Number 1139745-CDBP00340-G
Ultra Librarian 3D Model Ultra Librarian CDBP00340-G CAD Model

Description

The 1139745-CDBP00340-G from Comchip Technology is a Schottky diode that is perfect for use in small signal applications.

  • Maximum Reverse Voltage: 30V
  • Average Rectified Current: 30mA
  • Maximum Forward Voltage: 370mV @ 1mA
  • Maximum Reverse Leakage Current: 500nA @ 30V
  • Capacitance: 2pF @ 1V and 1MHz
  • Mounting: Surface Mount
  • Package: SOD-723
