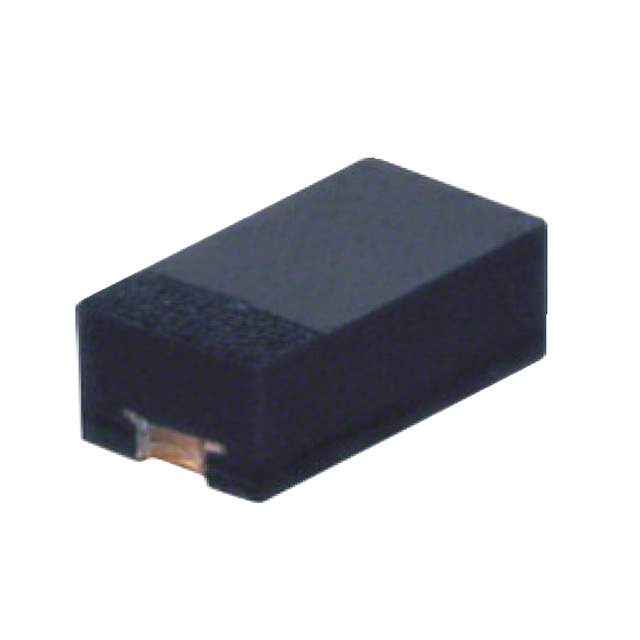

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Comchip Technology
Packaging Reel - TR
Status Active
Diode Type Schottky
Voltage - DC Reverse (Vr) (Max) 40V
Current - Average Rectified (Io) 350mA
Voltage - Forward (Vf) (Max) @ If 600mV @ 200mA
Speed(Frequency) Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) 6.4ns
Current - Reverse Leakage @ Vr 5μA @ 30V
Capacitance @ Vr, F 50pF @ 0V, 1MHz
Mounting SMD (SMT)
Case / Package 0603 (1608 Metric)
Operating Temperature - Junction 125°C (Max)
Win Source Part Number 1028671-CDBU0340
Popularity Medium
Supply and Demand Status Balance
Quantity per package 4k pcs
Ultra Librarian 3D Model Ultra Librarian CDBU0340 CAD Model

Description

The Comchip Technology CDBU0340 is a Schottky diode used in various applications. Comchip Technology.

  • Maximum Voltage: 40V
  • Average Rectified Current: 350mA
  • Recovery Speed: Fast Recovery 200mA (Io)
  • Supply and Demand Status: In Balance
  • Win Source Part Number: 1028671-CDBU0340
  • Package: 4k pcs
