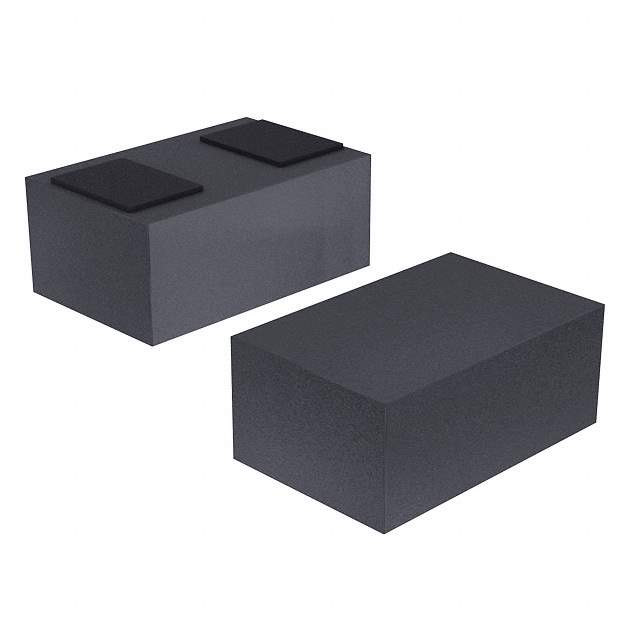

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Circuit Protection>TVS - Diodes
Mfr Comchip Technology
Package Tape & Reel (TR)
Type Zener
Bidirectional Channels 1
Voltage - Reverse Standoff (Typ) 24V
Voltage - Breakdown (Min) 25V
Voltage - Clamping (Max) @ Ipp 47V
Current - Peak Pulse (10/1000µs) 1A (8/20µs)
Power - Peak Pulse 47W
Power Line Protection No
Applications General Purpose
Capacitance @ Frequency 10pF @ 1MHz
Mounting SMD (SMT)
Package / Case 0503 (1308 Metric)
Supplier Device Package 0503/SOD-723F
Base Product Number CPDER24
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Standard Package 4,000
Win Source Part Number 1133253-CPDER24V
Ultra Librarian 3D Model Ultra Librarian CPDER24V CAD Model

Description

The Comchip Technology CPDER24V is a bidirectional, SMD (SMT) mounted, zener type electronic component that is a part of the Circuit Protection>TVS - Diodes category. The Comchip Technology CPDER24V is manufactured by Comchip Technology.

  • Voltage Reverse Standoff (Typ): 24V
  • Voltage Breakdown (Min): 25V
  • Voltage Clamping (Max) @ Ipp: 47V
