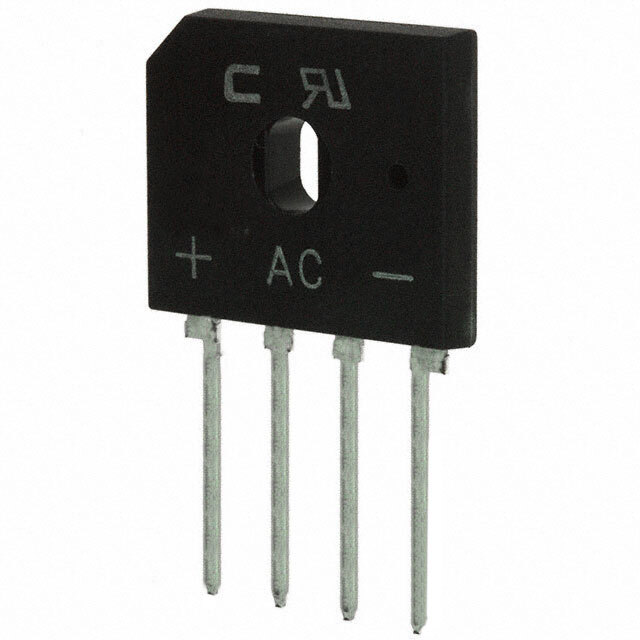

GBU806-G Comchip Technology
Same model may have multiple batches, images only for reference.

GBU806-G

Part No GBU806-G
Manufacturer Comchip Technology
Catalog Bridge Rectifiers
Description BRIDGE RECT 1PHASE 600V 8A GBU
Datasheet
GBU806-G Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - Bridge Rectifiers
Mfr Comchip Technology
Series -
Package Bulk
Product Status Active
Diode Type Single Phase
Technology Standard
Voltage - Peak Reverse (Max) 600 V
Current - Average Rectified (Io) 8 A
Voltage - Forward (Vf) (Max) @ If 1 V @ 4 A
Current - Reverse Leakage @ Vr 10 µA @ 600 V
Temperature Range - Operating -55°C ~ 150°C (TJ)
Mounting Type Through Hole
Package / Case 4-SIP, GBU
Supplier Device Package GBU
Base Product Number GBU806
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 1367987-GBU806-G
Ultra Librarian 3D Model Ultra Librarian GBU806-G CAD Model

Description

The GBU806-G is a bridge rectifier diode manufactured by Comchip Technology. It is a discrete semiconductor product designed for rectifying alternating current (AC) to direct current (DC) in electronic circuits.

  • Maximum Voltage Peak Reverse: 600V
  • Average Rectified Current: 8A
  • Temperature Range: -55°C to 150°C
  • Mounting: through-hole
  • Package: 4-SIP, GBU
