Same model may have multiple batches, images only for reference.

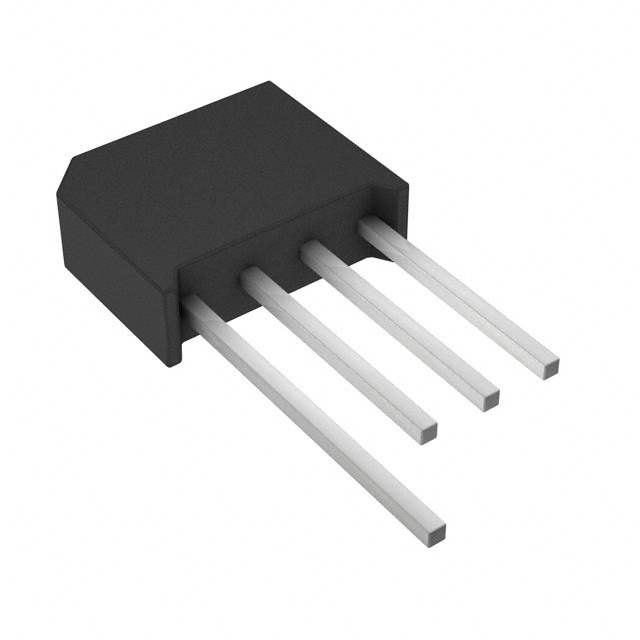

KBL410-G Real Image
Same model may have multiple batches, images only for reference.

KBL410-G

Part No KBL410-G
Manufacturer Comchip Technology
Catalog Bridge Rectifiers
Description RECTIFIER BRIDGE 4A 1000V KBL
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Comchip Technology
Packaging Bulk
Status Active
Diode Type Single Phase
Technology Standard
Voltage - Peak Reverse (Max) 1000V
Current - Average Rectified (Io) 4A
Voltage - Forward (Vf) (Max) @ If 1.1V @ 4A
Current - Reverse Leakage @ Vr 10μA @ 1000V
Temperature Range - Operating -55°C to 150°C (TJ)
Mounting Through Hole
Case / Package KBL
Win Source Part Number 002131-KBL410-G
Popularity Medium
Supply and Demand Status Limited
Quantity per package 500
Ultra Librarian 3D Model Ultra Librarian KBL410-G CAD Model

Description

The Comchip Technology KBL410-G is a single-phase standard diode designed for use in discrete semiconductor products.

  • Average Rectified Current: 4A
  • Peak Reverse Voltage: 1000V
  • Forward Voltage: 1.1V @ 4A
  • Reverse Leakage Current: 10μA @ 1000V
  • Operating Temperature Range: -55°C to 150°C
  • Mounting Package: KBL through-hole
  • Package Quantity: 500 diodes
