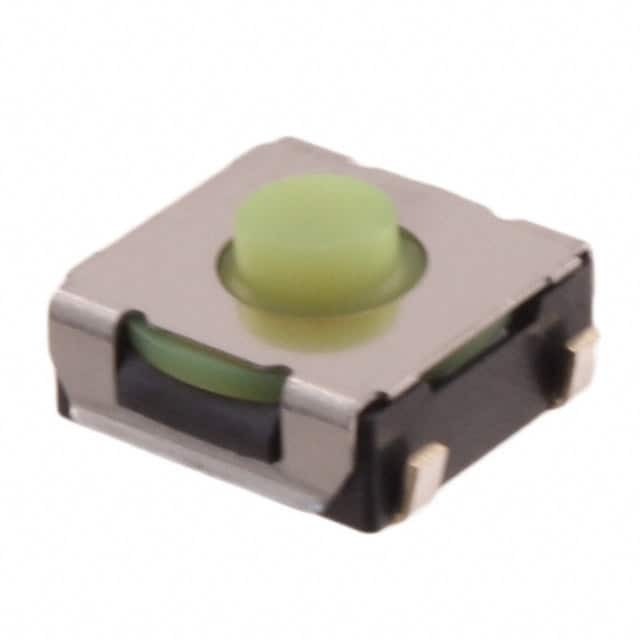

B3SL-1002P
Same model may have multiple batches, images only for reference.

B3SL-1002P

Part No B3SL-1002P
Manufacturer Omron
Catalog Tactile Switches
Description SWITCH TACTILE SPST-NO 0.05A 12V / Tactile Switch SPST-NO Top Actuated Surface Mount
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches - Tactile Switches
Mfr Omron
Series B3SL
Package Tape & Reel
Product Status Active
Circuit SPST-NO
Switch Function Off-Mom
Contact Rating @ Voltage 0.05A @ 12VDC
Actuator Type Standard
Mounting Type Surface Mount
Actuator Height off PCB, Vertical 3.40mm
Actuator Orientation Top Actuated
Termination Style SMD (SMT) Tab
Outline 6.00mm x 6.00mm
Illumination Non-Illuminated
Operating Force 200gf
Ingress Protection IP67 - Dust Tight, Waterproof
Features Sealed - Fully
Temperature Range - Operating -25°C ~ 90°C
Actuator Material Rubber
Switch Travel 0.30mm
Mechanical Life 100,000 Cycles
Base Product Number B3SL
Standard Package 2,000 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.50.9031
Win Source Part Number 844770-B3SL-1002P
Ultra Librarian 3D Model Ultra Librarian B3SL-1002P CAD Model

Description

The 844770-B3SL-1002P is a tactile switch that is widely used in various electronic devices and applications.

  • Series: B3SL
  • Termination Style: SMD (SMT) Tab
  • Feature: Sealed Fully (Dust Tight & Waterproof)
  • Ingress Protection Rating: IP67
  • Package: Tape & Reel
  • Quantity: 2,000 Pieces
  • Circuit Configuration: SPST-NO
  • Versatile Component: can be used in a wide range of applications, including consumer electronics, industrial equipment, and automotive systems.
  • Benefits: compact design, reliable performance, and long mechanical life.
