Same model may have multiple batches, images only for reference.

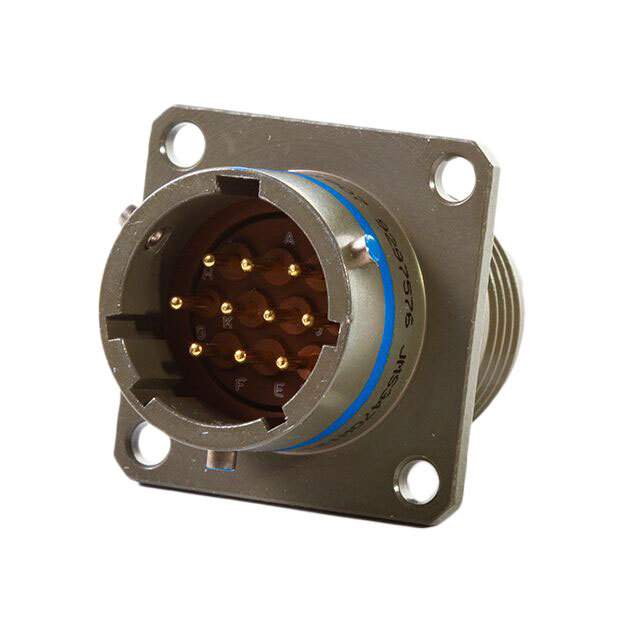

MS3470L14-4P Real Image
Same model may have multiple batches, images only for reference.

MS3470L14-4P

Part No MS3470L14-4P
Manufacturer Conesys
Catalog Circular Connectors - Assemblies
Description CONN RCPT MALE 4POS GOLD CRIMP / 4 Position Circular Connector Receptacle, Male Pins Crimp
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Circular Connectors - Circular Connector Assemblies
Mfr Conesys
Series Military, MIL-DTL-26482 Series II
Package Box
Connector Type Receptacle, Male Pins
Number of Positions 4
Shell Size - Insert 14-4
Mounting Type Panel Mount
Mounting Feature Flange
Termination Crimp
Fastening Type Bayonet Lock
Orientation N (Normal)
Primary Material Metal
Shell Material Aluminum Alloy
Shell Finish Electroless Nickel
Contact Finish - Mating Gold
Temperature Range - Operating -55°C ~ 200°C
Contact Finish Thickness - Mating 50.0µin (1.27µm)
Base Product Number MS3470L14
Standard Package 1
ECCN EAR99
HTSUS 8536.69.4020
Win Source Part Number 1340657-MS3470L14-4P
Ultra Librarian 3D Model Ultra Librarian MS3470L14-4P CAD Model

Description

The MIL-DTL-26482 Series II is a circular connector assembly with a bayonet lock fastening type. MIL-DTL-26482 Series II

  • Type: Circular Connector
  • Fastening Type: Bayonet Lock
  • Connector Type: Receptacle
  • Contact Gender: Male Pins
  • Shell Size: 14-4 Insert
  • Contact Finish: Gold
  • Mating Contact Finish Thickness: 50.0µin (1.27µm)
  • Mounting Type: Panel Mount
  • Mounting Feature: Flange
  • Operating Temperature: -55°C to 200°C
  • Shell Material: Aluminum Alloy
  • Shell Finish: Electroless Nickel
  • Packaging: Box
  • Standard Package: 1
