Same model may have multiple batches, images only for reference.

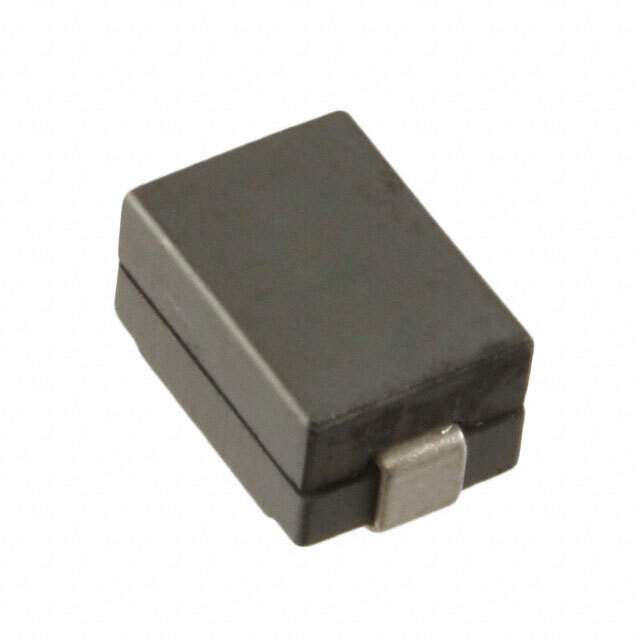

FP1005R1-R12-R Real Image
Same model may have multiple batches, images only for reference.

FP1005R1-R12-R

Part No FP1005R1-R12-R
Manufacturer Cooper Bussmann, Inc.
Catalog Fixed Inductors
Description FIXED IND 120NH 53A 0.39 MOHM / High frequency, high current power inductors
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Eaton - Electronics Division
Packaging Reel
Type Wirewound
Material - Core Ferrite
Inductance 120nH
Tolerance ±10%
Current Rating (Amps) 53A
Current - Saturation 60A
Shielding Unshielded
DC Resistance (DCR) 0.39mOhm
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100kHz
Mounting Style SMD
Manufacturer Package Nonstandard
Dimension 0.402" L x 0.276" W (10.20mm x 7.00mm)
Height - Seated (Maximum) 0.195" (4.95mm)
Manufacturer Pack Quantity 950
MSL Level 1 (Unlimited)
Popularity Medium
Supply and Demand Status Balance
Win Source Part Number 807075-FP1005R1-R12-R
Ultra Librarian 3D Model Ultra Librarian FP1005R1-R12-R CAD Model

Description

The FP1005R1-R12-R is a wirewound electronic component from Eaton - Electronics Division.

  • Features: Shielded
  • Inductance: 120nH
  • Tolerance: ±10%
  • Current Saturation: 60A
  • DC Resistance (DCR): 0.39mOhm
  • Operating Temperature: -40°C to 125°C
