Same model may have multiple batches, images only for reference.

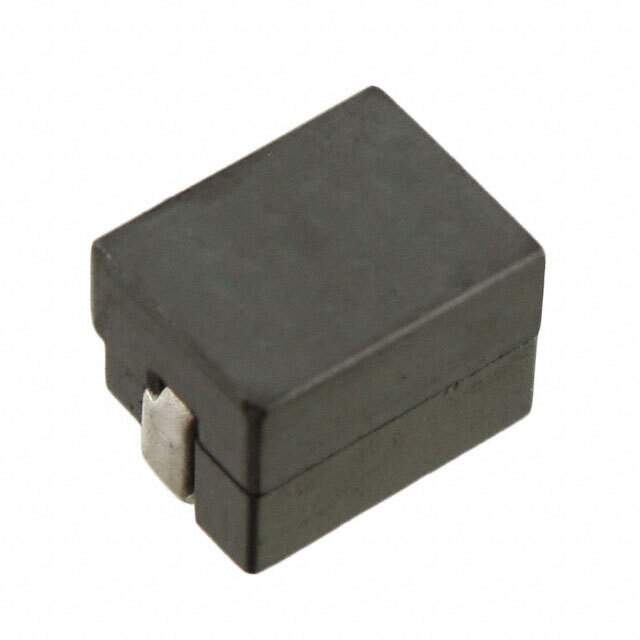

FP1007R1-R14-R Real Image
Same model may have multiple batches, images only for reference.

FP1007R1-R14-R

Part No FP1007R1-R14-R
Manufacturer Cooper Bussmann, Inc.
Catalog Fixed Inductors
Description FIXED IND 140NH 60A 0.29 MOHM / High Current, High Frequency, Power Inductors
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Eaton - Electronics Division
Packaging Reel
Type Wirewound
Material - Core Ferrite
Inductance 140nH
Tolerance ±10%
Current Rating (Amps) 60A
Current - Saturation 72A
Shielding Unshielded
DC Resistance (DCR) 0.29mOhm
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100kHz
Mounting Style SMD
Manufacturer Package Nonstandard
Dimension 0.402" L x 0.307" W (10.20mm x 7.80mm)
Height - Seated (Maximum) 0.276" (7.00mm)
Manufacturer Pack Quantity 700
MSL Level 1 (Unlimited)
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 809363-FP1007R1-R14-R
Ultra Librarian 3D Model Ultra Librarian FP1007R1-R14-R CAD Model

Description

The Eaton - Electronics Division FP1007R1-R14-R is a high-quality electronic component that is designed to provide reliable performance in a variety of applications.

  • Component Type: Wirewound
  • Mounting Style: SMD
  • Shielding: Unshielded
  • Inductance: 140nH ±10%
  • Material - Core: Ferrite
  • Current Saturation: 72A
  • DC Resistance (DCR): 0.29mOhm
  • Operating Temperature: -40°C to 125°C
  • Dimension: 0.402" L x 0.307" W (10.20mm x 7.80mm)
  • Height - Seated (Max): 0.276" (7.00mm)
  • Supply and Demand Status: Limited
  • Manufacturer Pack Quantity: 700
  • MSL Level: 1 (Unlimited)
  • Current Rating: 60A
  • Inductance Frequency: 100kHz
