Same model may have multiple batches, images only for reference.

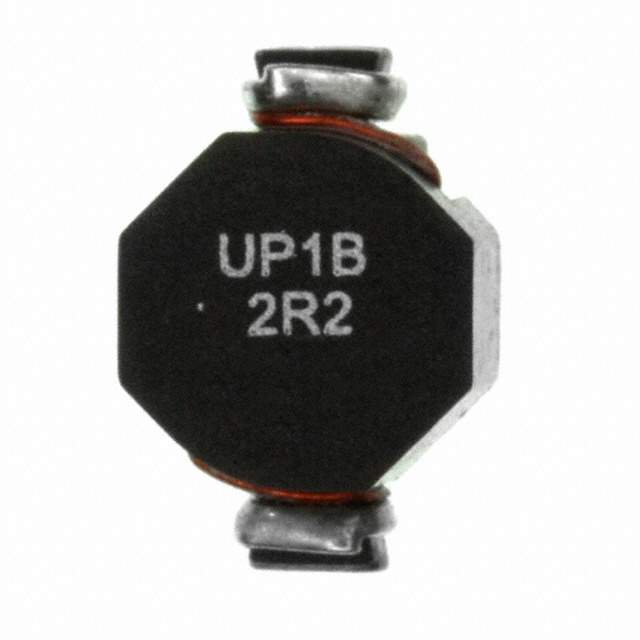

UP1B-2R2-R Real Image
Same model may have multiple batches, images only for reference.

UP1B-2R2-R

Part No UP1B-2R2-R
Manufacturer Cooper Bussmann, Inc.
Catalog Fixed Inductors
Description Miniature surface mount design | FIXED IND 2.2UH 3.1A 36.3 MOHM
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Eaton - Electronics Division
Packaging Reel
Type Wirewound
Material - Core Ferrite
Inductance 2.2μH
Tolerance ±20%
Current Rating (Amps) 3.1A
Current - Saturation 3.5A
Shielding Unshielded
DC Resistance (DCR) 36.3mOhm Max
Temperature Range - Operating -40°C ~ 85°C
Inductance Frequency - Test 100kHz
Mounting Style SMD
Manufacturer Package Nonstandard
Parts Dimension 0.350" L x 0.240" W (8.89mm x 6.10mm)
Height - Seated (Maximum) 0.197"
Manufacturer Pack Quantity 1
MSL Level 1 (Unlimited)
Win Source Part Number 1277413-UP1B-2R2-R
Manufacturer Homepage www.cooperbussmann.com
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian UP1B-2R2-R CAD Model

Description

The Eaton - Electronics Division UP1B-2R2-R is a wirewound type inductor that is designed to be used in various applications.

  • Packaging: Reel
  • Shielding: Unshielded
  • Inductance: 2.2μH
  • Tolerance: ±20%
  • Material: Ferrite
  • Maximum DC Resistance: 36.3mOhm
  • Operating Temperature Range: -40°C to 85°C
  • Quality: Reliable component that is made with high-quality materials
  • Suitable for: Various applications
