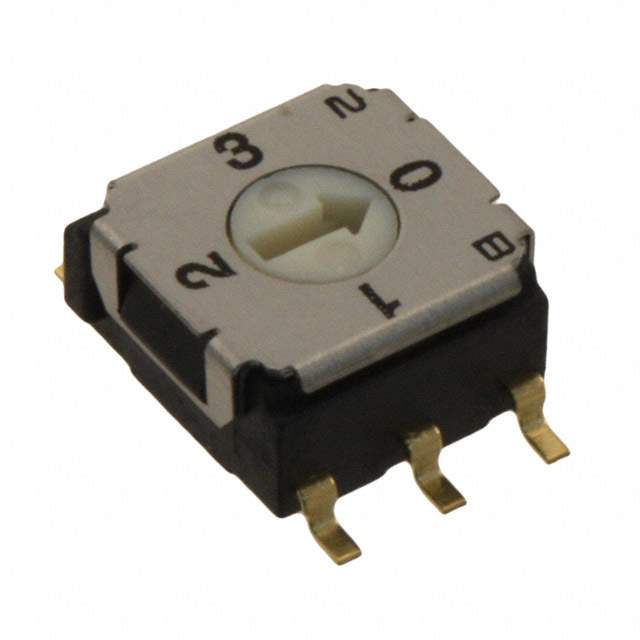

CS-7-14TB

Part No CS-7-14TB
Manufacturer Copal Electronics Inc.
Catalog DIP Switches
Description SWITCH ROTARY DIP SP4T 100MA 5V
Datasheet
CS-7-14TB Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Switches
Manufacturer Copal Electronics Inc.
Packaging Reel - TR
Status Active
Circuit SP4T
Number of Positions 4
Current Rating 100mA
Voltage Rating 5VDC
Actuator Type Rotary for Tool
Actuator Level Flush, Recessed
Contact Finish Gold
Height Above Board 0.148" (3.75mm)
Mounting SMD (SMT)
Termination Style Gull Wing
Pitch 0.100" (2.54mm), Full
Washable Yes
Body Material Polyphenylene Sulfide (PPS)
Length 0.287" (7.30mm)
Temperature Range - Operating -40°C to 85°C
Electrical Life 10,000 Steps
Win Source Part Number 1030526-CS-7-14TB
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian CS-7-14TB CAD Model

Description

The Copal Electronics Inc. SP4T rotary switch is a versatile electronic component that can be used in a variety of applications.

  • Voltage rating: 5VDC
  • Current rating: 100mA
  • Mounting: printed circuit board using surface mount technology (SMT)
  • Terminations: gull wing terminations
  • Circuit configuration: SP4T
  • Actuation: rotary tool
  • Mechanical life: 10,000 steps
  • Washable: washable
  • Height above board: 0.148" (3.75mm)
  • Length: 0.287" (7.30mm)
  • Temperature range: -40°C to 85°C
