Same model may have multiple batches, images only for reference.

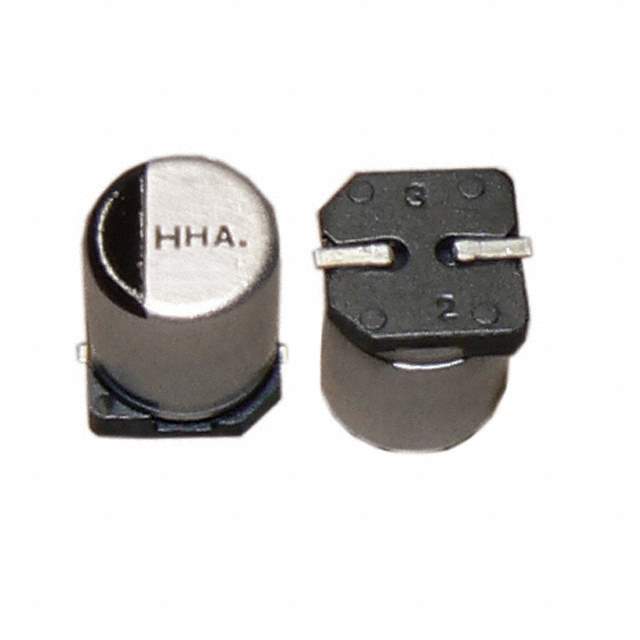

AHA106M25C12T-F Real Image
Same model may have multiple batches, images only for reference.

AHA106M25C12T-F

Part No AHA106M25C12T-F
Manufacturer Cornell Dubilier Electronics (CDE)
Catalog Aluminum Capacitors
Description CAP ALUM 10UF 20% 25V SMD / Cap Aluminum Lytic 10uF 25V 20% (5 X 5.4mm) SMD 23.2 Ohm 28mA 1000h 105°C Automotive T/R
Datasheet
AHA106M25C12T-F Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer Cornell Dubilier Electronics (CDE)
Series AHA
Packaging Reel package
Capacitance 10μF
Tolerance ±20%
Voltage Rating DC 25V
ESR (Equivalent Series Resistance) 23.2 Ohm @ 120Hz
Lifetime @ Temp. 1000 Hrs @ 105°C
Operating Temperature Range -55°C ~ 105°C
Polarization Polar
Applications General
Ripple Current - Low Frequency 28mA @ 120Hz
Ripple Current - High Frequency 47.6mA @ 10kHz
Dimension 0.197" Dia (5.00mm)
Height - Seated (Maximum) 0.213" (5.40mm)
Surface Mount Land Size 0.209" L x 0.209" W (5.30mm x 5.30mm)
Mounting SMD
Package Radial, Can - SMD
Win Source Part Number 777735-AHA106M25C12T-F
Popularity Medium
Supply and Demand Status Limited
Family Name AHA
Introduction Date March 05, 2002
ECCN EAR99
Country of Origin United States of America
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian AHA106M25C12T-F CAD Model

Description

The Cornell Dubilier Electronics (CDE) AHA106M25C12T-F is a surface-mount device (SMD) capacitor that belongs to the AHA series.

  • Series: AHA
  • Capacitance: 10μF
  • Voltage Rating: 25V
  • Temperature Range: -55°C to 105°C
  • Lifetime: 1000 hours @ 105°C
  • Win Source Part Number: 777735-AHA106M25C12T-F
