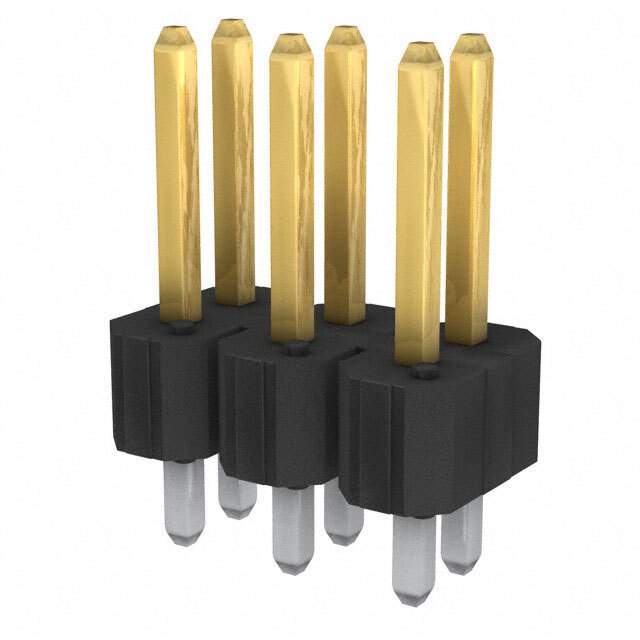

67996-106HLF Real Image
Same model may have multiple batches, images only for reference.

67996-106HLF

Part No 67996-106HLF
Manufacturer Amphenol
Catalog Rectangular Connectors
Description CONN HEADER VERT 6POS 2.54MM / Connector Header Through Hole 6 position 0.100" (2.54mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors>Headers, Male Pins
Manufacturer Amphenol ICC (FCI)
Packaging Bag
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.100" (2.54mm)
Number of Positions 6
Number of Rows 2
Row Spacing - Mating 0.100" (2.54mm)
Number of Positions Loaded All
Style Board to Board
Shrouding Unshrouded
Mounting Through Hole
Termination Solder
Fastening Type Push-Pull
Contact Length - Mating 0.230" (5.84mm)
Contact Length - Post 0.095" (2.41mm)
Overall Contact Length 0.425" (10.80mm)
Insulation Height 0.100" (2.54mm)
Contact Shape Square
Contact Finish - Mating Gold or Gold, GXT™
Contact Finish Thickness - Mating 30.0µin (0.76µm)
Contact Material Phosphor Bronze
Temperature Range - Operating -65°C ~ 125°C
Material Flammability Rating UL94 V-0
Insulation Color Black
Current Rating (Amps) 3A per Contact
Base Product Number 67996
RoHS Status RoHS Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number 67996106HLF,609-3202
Standard Package 400
Win Source Part Number 1332429-67996-106HLF
Ultra Librarian 3D Model Ultra Librarian 67996-106HLF CAD Model

Description

The Amphenol ICC (FCI) 67996-106HLF is a 6-position male header connector with 2 rows and through-hole mounting.

  • Manufacturer: Amphenol ICC (FCI)
  • Positions: 6
  • Contact Gender: Male
  • Rows: 2
  • Mounting Type: Through Hole
  • Application: Board-to-Board
  • Pitch: 0.100" (2.54mm)
  • Current Rating: 3A per Contact
  • Contact Material: Phosphor Bronze
  • Contact Finish Options: Gold or Gold GXT™
  • Contact Finish Thickness: 30.0µin (0.76µm)
  • Insulation Height: 0.100" (2.54mm)
  • Insulation Color: Black
  • Temperature Range: -65°C to 125°C
  • RoHS Compliant: Yes
