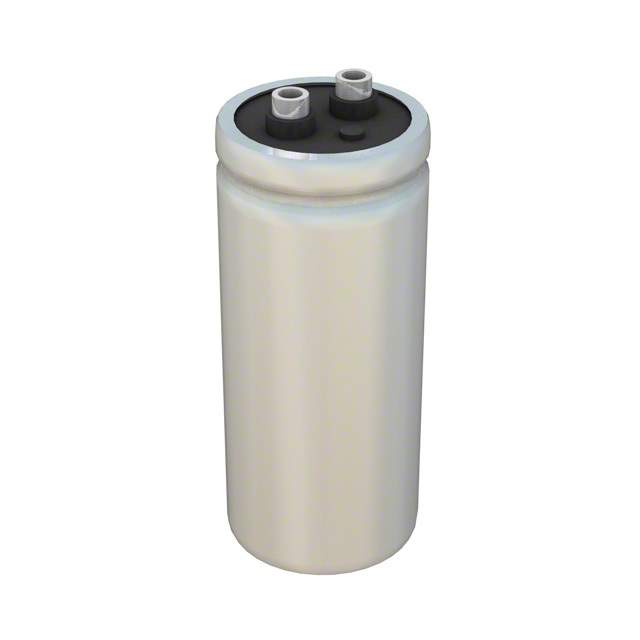

Same model may have multiple batches, images only for reference.

CGR392U040R3C

Name: CGR392U040R3C
Brand: Cornell Dubilier Electronics (CDE)
SKU: 777800
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

Part No	CGR392U040R3C
Manufacturer	Cornell Dubilier Electronics (CDE)
Catalog	Aluminum Capacitors
Description	CAP ALUM 3900UF 40V SCREW / Cap Aluminum Lytic 3900uF 40V -10% to 75% (34.93 X 79.38mm) Screw Terminal 0.013 Ohm 12200mA 2000h 105°C
Datasheet	CGR392U040R3C Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Capacitors
Manufacturer	Cornell Dubilier Electronics (CDE)
Series	CGR
Packaging	Bulk
Capacitance	3900μF
Tolerance	-10%, +75%
Voltage Rating DC	40V
ESR (Equivalent Series Resistance)	13 mOhm @ 120Hz
Lifetime @ Temp.	2000 Hrs @ 105°C
Operating Temperature Range	-40°C ~ 105°C
Polarization	Polar
Applications	General
Ripple Current - Low Frequency	12.2A @ 120Hz
Ripple Current - High Frequency	14.03A @ 10kHz
Dimension	1.375" Dia (34.93mm)
Height - Seated (Maximum)	3.125" (79.38mm)
Mounting	Chassis Mount
Package	Radial, Can - Screw Terminals
Win Source Part Number	777800-CGR392U040R3C
Popularity	Medium
Supply and Demand Status	Limited
Family Name	CGR
Introduction Date	February 23, 1998
ECCN	EAR99
Country of Origin	United States of America
Estimated EOL Date	2027
Ultra Librarian 3D Model	Ultra Librarian CGR392U040R3C CAD Model

Alternative Products

Description

The Cornell Dubilier Electronics (CDE) CGR series is a range of capacitors designed for general applications.

Capacitance: 3900μF
Voltage Rating: 40V
Tolerance: -10%, +75%
ESR (Equivalent Series Resistance): 13 mOhm @ 120Hz
Mounting Type: Chassis Mount
Size: 1.375" Dia (34.93mm) x 3.125" (79.38mm)
Lifetime: 2000 Hrs @ 105°C
Operating Temperature Range: -40°C to 105°C
Package/Case: Radial, Can
Terminals: Screw Terminals
Supply: Limited Quantities
