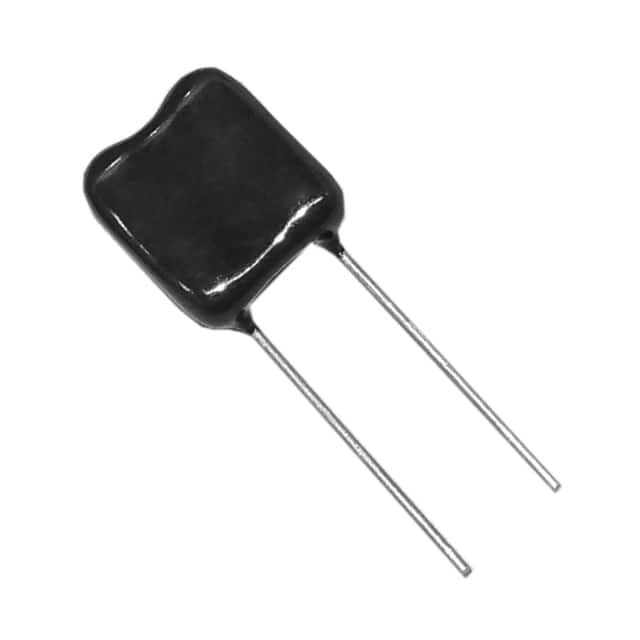

Same model may have multiple batches, images only for reference.
CM05ED390JO3
Same model may have multiple batches, images only for reference.

CM05ED390JO3

Part No CM05ED390JO3
Manufacturer Cornell Dubilier Electronics (CDE)
Catalog Mica and PTFE Capacitors
Description CAP MICA 500V / 39 pF Mica Capacitor 500 V Radial
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Mica and PTFE Capacitors
Mfr Cornell Dubilier Electronics (CDE)
Series CM05
Package Bulk
Product Status Active
Capacitance 39 pF
Tolerance ±5%
Voltage - Rated 500 V
Dielectric Material Mica
Temperature Range - Operating -55°C ~ 125°C
Mounting Type Through Hole
Package / Case Radial
Lead Spacing 0.232" (5.90mm)
Features General Purpose
Size / Dimension 0.449" L x 0.169" W (11.40mm x 4.30mm)
Height - Seated (Max) 0.358" (9.10mm)
Standard Package 100 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8532.29.0020
California Prop 65 Warning Information
Win Source Part Number 915540-CM05ED390JO3
Ultra Librarian 3D Model Ultra Librarian CM05ED390JO3 CAD Model

Description

The electronic component with the ID 844753 is a mica and PTFE capacitor from Cornell Dubilier Electronics (CDE).

  • Capacitor Type: Mica and PTFE
  • Series: CM05
  • Application: General Purpose
  • Capacitance: 39 pF
  • Voltage Rating: 500 V
  • Package: Radial
  • Size (L x W): 0.449" in length and 0.169" in width
  • Seated Height: 0.358"
  • Lead Spacing: 0.232"
  • Operating Temperature: -55°C to 125°C
  • Status: Active
  • Standard Package: 100 pieces
  • REACH Compliance: Compliant
  • MSL Level: 1 (Unlimited)
  • HTSUS Code: 8532.29.0020
  • California Prop 65 Warning: Provided
