Same model may have multiple batches, images only for reference.

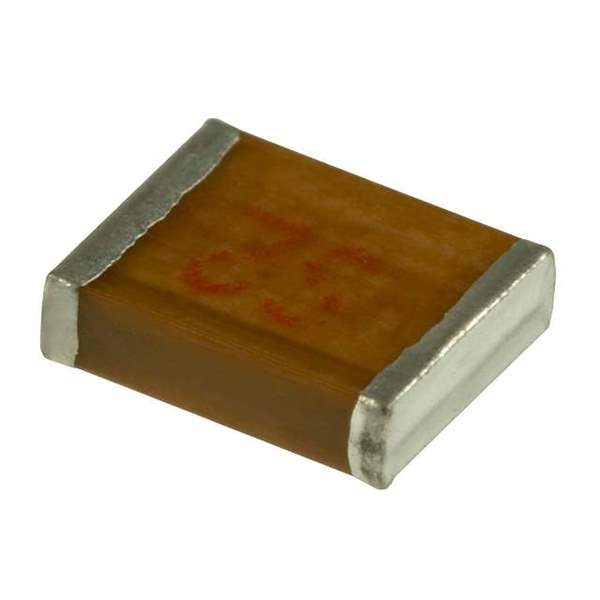

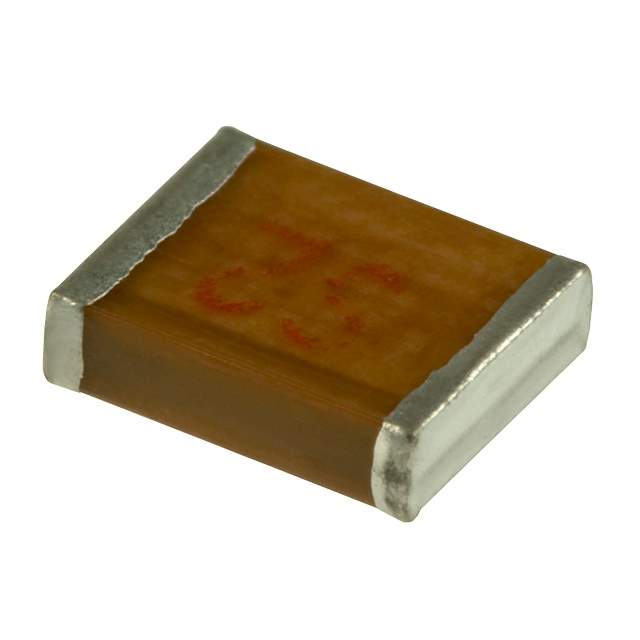

MC18FA501J-TF Real Image
Same model may have multiple batches, images only for reference.

MC18FA501J-TF

Part No MC18FA501J-TF
Manufacturer Cornell Dubilier Electronics (CDE)
Catalog Mica and PTFE Capacitors
Description CAP MICA 500PF 5% 100V 1812 / Cap Mica 500pF 100V 5% (4.5 X 3.2 X 2mm) SMD 125°C T/R
Datasheet
MC18FA501J-TF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer Cornell Dubilier Electronics (CDE)
Series MC
Packaging Reel package
Capacitance 500pF
Tolerance ±5%
Voltage Rating DC 100V
Dielectric Material Mica
Operating Temperature Range -55°C ~ 125°C
Mounting SMD
Package 1812 (4532 Metric)
Features RF, High Q, Low Loss
Dimension 0.177" L x 0.126" W (4.50mm x 3.20mm)
Height - Seated (Maximum) 0.079" (2.00mm)
Win Source Part Number 777913-MC18FA501J-TF
Popularity Medium
Supply and Demand Status Limited
Family Name MC
Introduction Date March 14, 2002
ECCN EAR99
Country of Origin Mexico, United States of America
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian MC18FA501J-TF CAD Model

Description

The Cornell Dubilier Electronics MC18FA501J-TF is a surface mount capacitor that has a capacitance of 500pF and a voltage rating DC of 100V.

  • Tolerance: ±5%
  • Dielectric Material: Mica
  • Features: High Q, Low Loss
  • RF Applications: Yes
  • Series: MC
  • Package Size: 1812 (4532 Metric)
  • Dimension: 0.177" L x 0.126" W (4.50mm x 3.20mm)
  • Height - Seated (maximum): 0.079" (2.00mm)
  • Packaging: Reel
  • Introduction Date: March 14, 2002
  • Medium Popularity: Yes
  • Estimated EOL Date: 2027
