Same model may have multiple batches, images only for reference.

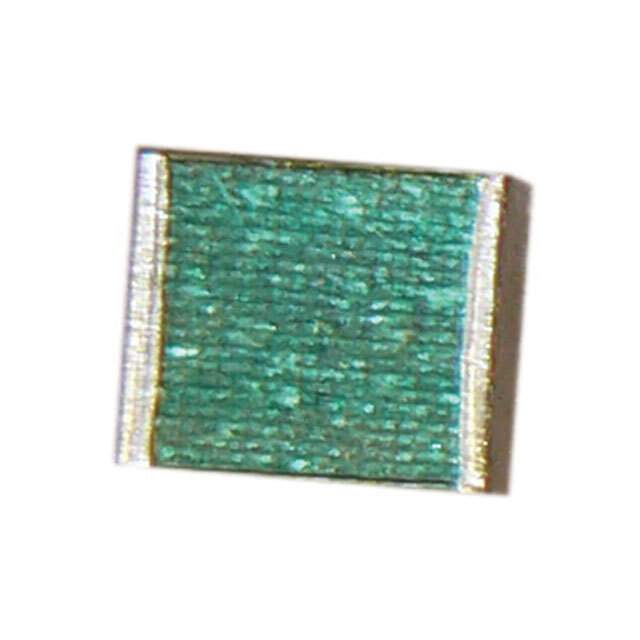

MCH38FM180J Real Image
Same model may have multiple batches, images only for reference.

MCH38FM180J

Part No MCH38FM180J
Manufacturer Cornell Dubilier Electronics (CDE)
Catalog Mica and PTFE Capacitors
Description CAP MICA 18PF 5% 4KV SMD
Datasheet
MCH38FM180J Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer Cornell Dubilier Electronics (CDE)
Packaging Bulk
Status Active
Capacitance 18pF
Tolerance ±5%
Voltage Rating 4000V
Dielectric Material Mica
Temperature Range - Operating -55°C to 125°C
Mounting SMD (SMT)
Features RF, High Q, Low Loss
Height - Seated (Max) 0.080" (2.03mm)
Win Source Part Number 1039042-MCH38FM180J
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian MCH38FM180J CAD Model

Description

The Cornell Dubilier Electronics (CDE) 1039042-MCH38FM180J is a capacitor that is used for RF applications. It has a capacitance of 18pF and a voltage rating of 4000V. It has a low loss and high Q feature and is surface mounted.
