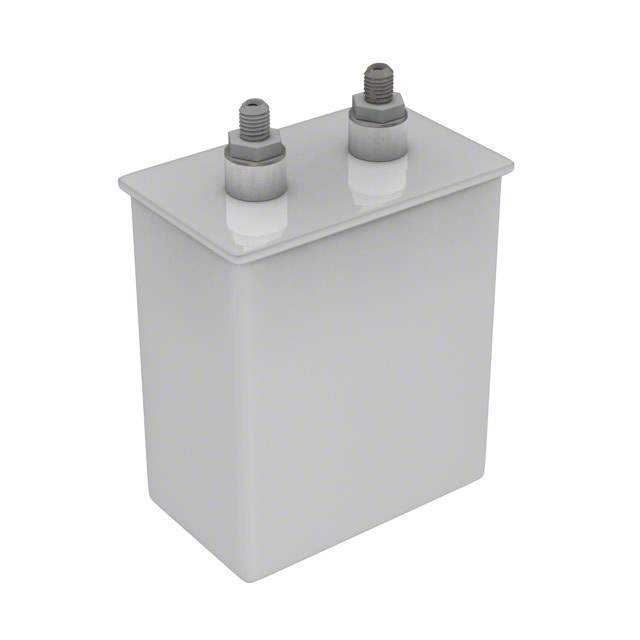

SCRN239R-F Real Image
Same model may have multiple batches, images only for reference.

SCRN239R-F

Part No SCRN239R-F
Manufacturer Cornell Dubilier Electronics (CDE)
Catalog Film Capacitors
Datasheet
SCRN239R-F Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Film Capacitors
Mfr Cornell Dubilier Electronics (CDE)
Series SCR
Package Bulk
Capacitance 20 µF
Tolerance ±10%
Voltage Rating - AC 1000Vpk (1KVPK)
Dielectric Material Paper, Metallized
Temperature Range - Operating -40°C ~ 80°C
Mounting Type Chassis Mount, Requires Holder/Bracket
Package / Case Radial, Can
Dimension 4.560" L x 2.840" W (115.82mm x 72.14mm), Lip
Height - Seated (Max) 5.190" (131.83mm)
Termination Threaded, Male
Lead Spacing 2.000" (50.80mm)
Applications Commutation; High Frequency, Switching; High Pulse, DV/DT
Standard Package 100
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.25.0040
Win Source Part Number 1302645-SCRN239R-F
Ultra Librarian 3D Model Ultra Librarian SCRN239R-F CAD Model

Description

The Cornell Dubilier Electronics (CDE) SCR film capacitor is designed for high frequency, switching, and high pulse DV/DT applications.

  • Capacitance: 20 µF
  • Tolerance: ±10%
  • Voltage Rating: 1000Vpk (1KVPK)
  • Termination: Threaded, male capacitor
  • Mounting: Requires a holder/bracket for chassis mounting
  • Package/Case: Radial, can
  • Dimensions: 4.560" L x 2.840" W (115.82mm x 72.14mm), Lip
  • Temperature Range: -40°C to 80°C
  • ECCN: EAR99
  • REACH: REACH unaffected
  • HTSUS: 8532.25.0040
