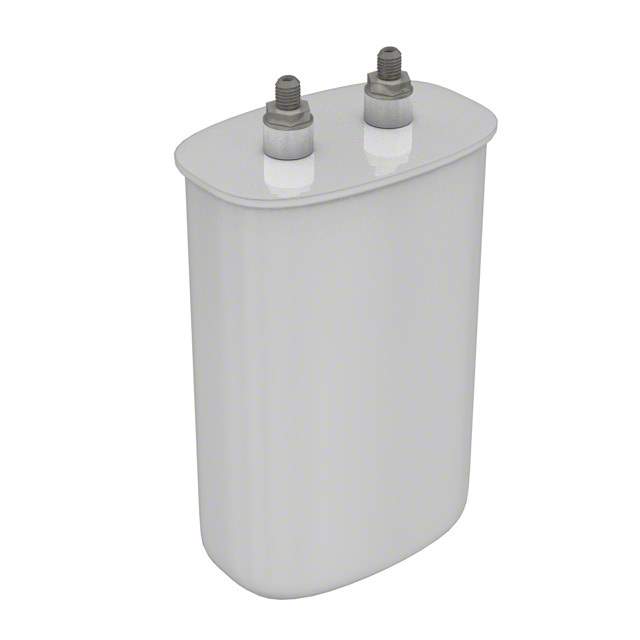

SCRN244R-F Real Image
Same model may have multiple batches, images only for reference.

SCRN244R-F

Part No SCRN244R-F
Manufacturer Cornell Dubilier Electronics (CDE)
Catalog Film Capacitors
Datasheet
SCRN244R-F Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Film Capacitors
Mfr Cornell Dubilier Electronics (CDE)
Series SCR
Package Bulk
Capacitance 5 µF
Tolerance ±10%
Voltage Rating - AC 1500Vpk (1.5KVPK)
Dielectric Material Paper, Metallized
Temperature Range - Operating -40°C ~ 80°C
Mounting Type Chassis Mount, Requires Holder/Bracket
Package / Case Radial, Can
Dimension 2.910" L x 1.910" W (73.91mm x 48.51mm), Lip
Height - Seated (Max) 5.810" (147.57mm)
Termination Threaded, Male
Lead Spacing 1.380" (35.05mm)
Applications Commutation; High Frequency, Switching; High Pulse, DV/DT
Standard Package 100
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.25.0040
Win Source Part Number 1302637-SCRN244R-F
Ultra Librarian 3D Model Ultra Librarian SCRN244R-F CAD Model

Description

The Cornell Dubilier Electronics (CDE) SCR series film capacitor is designed for commutation, high frequency, switching, and high pulse, DV/DT applications.

  • Capacitance: 5 µF
  • Tolerance: ±10%
  • Voltage Rating: 1500Vpk (1.5KVPK)
  • Operating Temperature Range: -40°C to 80°C
  • Mounting: Chassis mount, which requires a holder/bracket
  • Termination: Threaded, male
  • Package/Case: Radial, can
  • Height: 5.810" (147.57mm) when seated
  • Lead Spacing: 1.380" (35.05mm)
