Same model may have multiple batches, images only for reference.

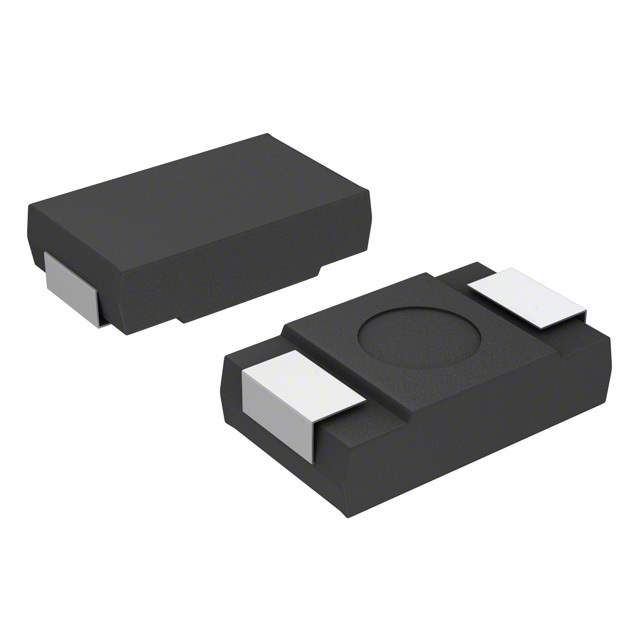

SPSX471M02R-4 Real Image
Same model may have multiple batches, images only for reference.

SPSX471M02R-4

Part No SPSX471M02R-4
Manufacturer Cornell Dubilier Electronics (CDE)
Catalog Aluminum - Polymer Capacitors
Datasheet
SPSX471M02R-4 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Aluminum - Polymer Capacitors
Mfr Cornell Dubilier Electronics (CDE)
Series SPSX
Product Status Obsolete
Type Polymer
Capacitance 470 µF
Tolerance ±20%
Voltage - Rated 2 V
ESR (Equivalent Series Resistance) 4.5mOhm
Lifetime @ Temp. 1000 Hrs @ 105°C
Temperature Range - Operating -40°C ~ 105°C
Applications General Purpose
Ripple Current @ High Frequency 4 A @ 100 kHz
Dimension 0.287" L x 0.169" W (7.30mm x 4.30mm)
Height - Seated (Max) 0.083" (2.10mm)
Mounting SMD (SMT)
Package / Case 2917 (7343 Metric)
Standard Package 3,500
MSL Level 1 (Unlimited)
ECCN EAR99
Win Source Part Number 1308446-SPSX471M02R-4
Ultra Librarian 3D Model Ultra Librarian SPSX471M02R-4 CAD Model

Description

The Cornell Dubilier Electronics (CDE) 1308446-SPSX471M02R-4 is a surface mount aluminum-polymer capacitor with a capacitance of 470 µF and a rated voltage of 2 V.

  • Tolerance: ±20%
  • ESR: 4.5 mOhm
  • Height: 0.083 inches (2.10mm)
  • Dimension: 0.287 inches L x 0.169 inches W (7.30mm x 4.30mm)
  • Lifetime: 1000 hours @ 105°C temperature range
  • Ripple Current: 4 A @ 100 kHz (high frequency)
