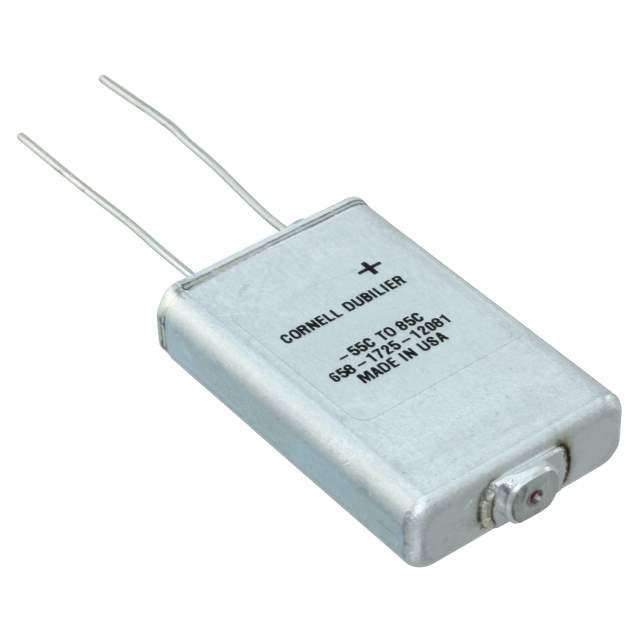

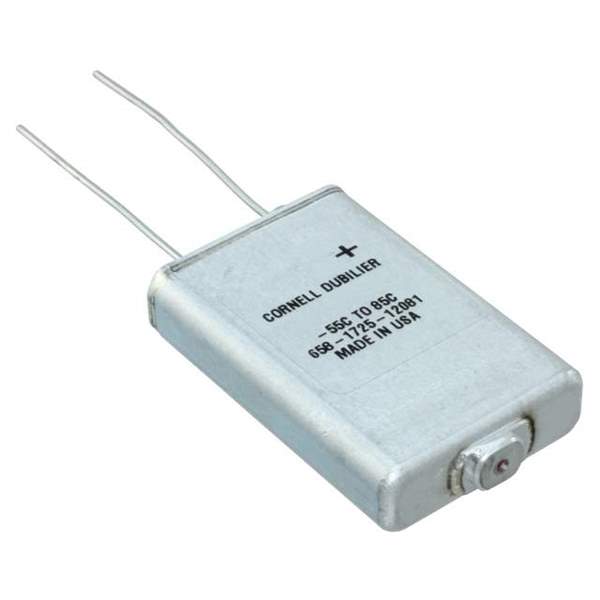

Same model may have multiple batches, images only for reference.

THAS681M075AA0C

Get a Quote

Part No	THAS681M075AA0C
Manufacturer	Cornell Dubilier Electronics (CDE)
Catalog	Aluminum Capacitors
Description	CAP ALUM 680UF 20% 75V FLATPACK / 680 µF 75 V Aluminum Electrolytic Capacitors FlatPack 290mOhm @ 120Hz 5000 Hrs @ 105°C
Datasheet	THAS681M075AA0C Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors>Aluminum Electrolytic Capacitors
Mfr	Cornell Dubilier Electronics (CDE)
Series	THAS
Package	Bulk
Capacitance	680 µF
Tolerance	±20%
Voltage - Rated	75 V
ESR (Equivalent Series Resistance)	290mOhm @ 120Hz
Lifetime @ Temp.	5000 Hrs @ 105°C
Temperature Range - Operating	-55°C ~ 105°C
Polarization	Polar
Applications	General Purpose
Ripple Current @ Low Frequency	1.1 A @ 120 Hz
Ripple Current @ High Frequency	1.43 A @ 20 kHz
Lead Spacing	0.394" (10.00mm)
Dimension	1.433" L x 1.000" W (36.40mm x 25.40mm)
Height - Seated (Max)	0.366" (9.30mm)
Mounting Type	Through Hole
Package / Case	FlatPack
MSL Level	Not Applicable
ECCN	EAR99
HTSUS	8532.22.0055
Standard Package	120
Win Source Part Number	1046071-THAS681M075AA0C
Ultra Librarian 3D Model	Ultra Librarian THAS681M075AA0C CAD Model

Alternative Products

Description

The Cornell Dubilier Electronics (CDE) THAS series capacitor is an aluminum electrolytic capacitor used in general-purpose applications.

Series: THAS
Manufacturer: Cornell Dubilier Electronics (CDE)
Type: Aluminum Electrolytic Capacitor
Application: General-Purpose
Capacitance: 680 µF
Tolerance: ±20%
Voltage Rating: 75V
Lead Spacing: 0.394" (10.00mm)
ESR: 290mOhm @ 120Hz
Mounting: Through-Hole
Package/Case: Flatpack
Height Seated: 0.366" (9.30mm)
Temperature Range: -55°C ~ 105°C
Dimension: 1.433" L x 1.000" W (36.40mm x 25.40mm)
