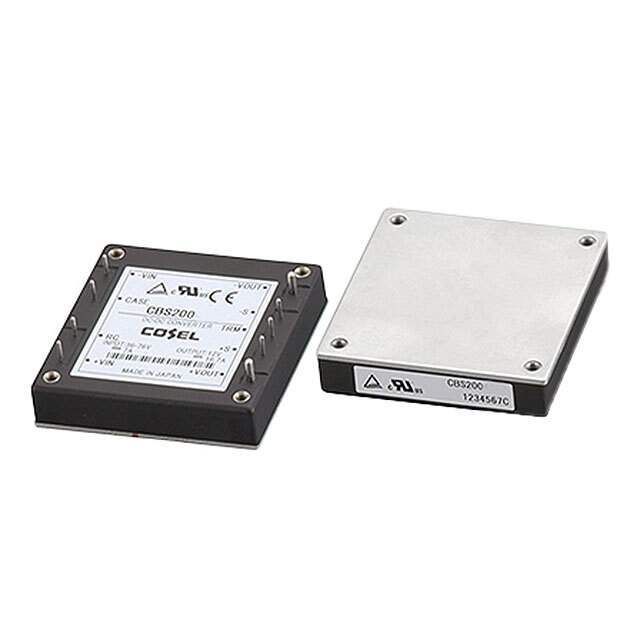

Same model may have multiple batches, images only for reference.
CBS2004824 Cosel USA, Inc.
Same model may have multiple batches, images only for reference.

CBS2004824

Part No CBS2004824
Manufacturer Cosel USA, Inc.
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER 24V
Datasheet
CBS2004824 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1309953-CBS2004824
Category Power Supplies - Board Mount -DC DC Converters
Mfr Cosel USA, Inc.
Packaging  Box
Part Status Obsolete
Type Isolated Module
Number of Outputs 1
Voltage - Input (Min) 36V
Voltage - Input (Max) 76V
Voltage - Output 1 24V
Current - Output (Max) 8.4A
Ultra Librarian 3D Model Ultra Librarian CBS2004824 CAD Model

Description

  • Compact DC-DC Converter, ”HALF BRICK” which has been standard size for Telecommunication Market
  • High efficiency
  • High density
  • High reliability : not built-in aluminum and tantalum electrolytic capacitor
  • Built-in overcurrent, overvoltage and thermal protection circuits
  • Built-in remote ON/OFF
  • Mounting hole (M3 tapped)
