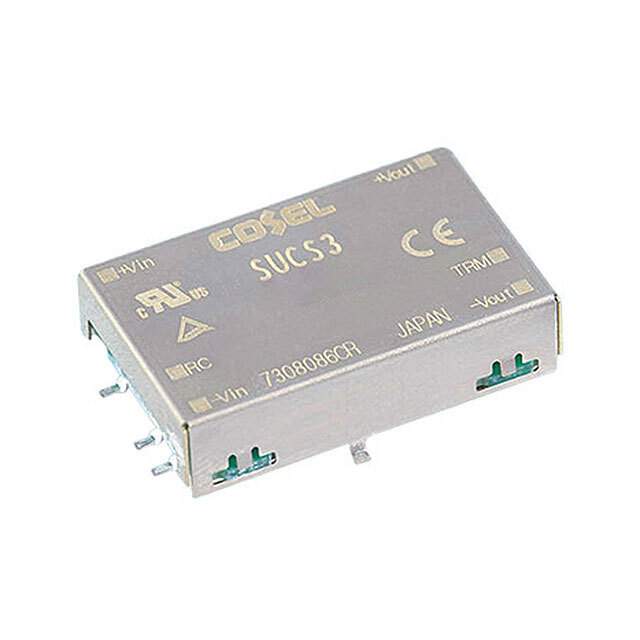

Same model may have multiple batches, images only for reference.

SUCS30512B

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	SUCS30512B
Manufacturer	Cosel USA, Inc.
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER 12V 3W / Isolated Module DC DC Converter 1 Output 12V 250mA 4.5V - 9V Input
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount>DC DC Converters
Mfr	Cosel USA, Inc.
Series	SUCS (3W)
Package	Box
Type	Isolated Module
Number of Outputs	1
Voltage - Input (Min)	4.5V
Voltage - Input (Max)	9V
Voltage - Output 1	12V
Current - Output (Max)	250mA
Power (Watts)	3 W
Voltage - Isolation	500 V
Applications	ITE (Commercial)
Temperature Range - Operating	-40°C ~ 85°C (With Derating)
Efficiency	77%
Mounting	SMD (SMT)
Package / Case	6-SMD Module
Dimension	0.98" L x 0.61" W x 0.28" H (25.0mm x 15.5mm x 7.0mm)
Base Product Number	SUCS30512
MSL Level	Not Applicable
ECCN	EAR99
HTSUS	8504.40.9580
Other Names	1776-2714,SUCS30512B-ND
Standard Package	1
Win Source Part Number	1030813-SUCS30512B
Ultra Librarian 3D Model	Ultra Librarian SUCS30512B CAD Model

Alternative Products

Description

The SUCS30512B is a 3W Isolated Module DC-DC Converter from Cosel USA, Inc.

Voltage Isolation: 500V
Output Count: Single
Maximum Output Current: 250mA
Input Voltage Range: 4.5V to 9V
Output Voltage: 12V
Efficiency: 77%
Application: ITE (Commercial)
Package: 6-SMD Module
Dimensions: 0.98" L x 0.61" W x 0.28" H (25.0mm x 15.5mm x 7.0mm)
