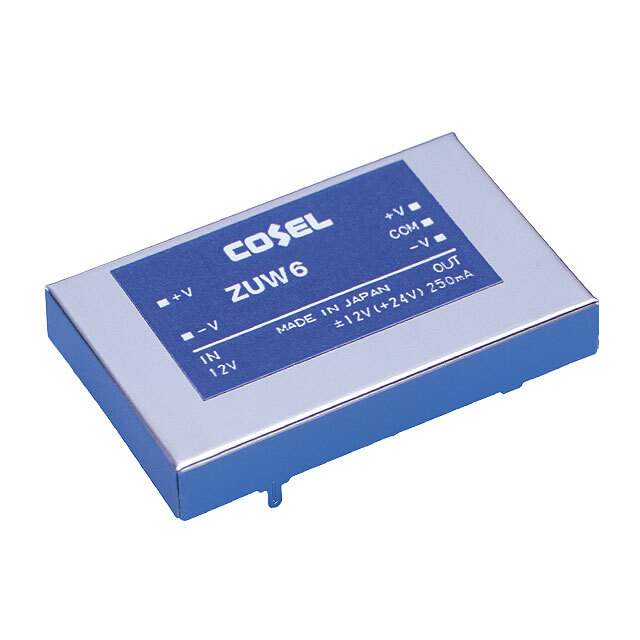

Same model may have multiple batches, images only for reference.

ZUW60515

Get a Quote

Part No	ZUW60515
Manufacturer	Cosel USA, Inc.
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER +/-15V / Isolated Module DC DC Converter 2 Output 15V -15V 200mA, 200mA 4.5V - 9V Input
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount>DC DC Converters
Mfr	Cosel USA, Inc.
Series	ZUW (6W)
Package	Box
Product Status	Last Time Buy
Type	Isolated Module
Number of Outputs	2
Voltage - Input (Min)	4.5V
Voltage - Input (Max)	9V
Voltage - Output 1	15V
Voltage - Output 2	-15V
Current - Output (Max)	200mA, 200mA
Voltage - Isolation	500 V
Applications	ITE (Commercial)
Features	OCP
Temperature Range - Operating	-20°C ~ 71°C (With Derating)
Efficiency	75%
Mounting Type	Through Hole
Package / Case	5-DIP Module
Dimension	1.75" L x 1.10" W x 0.28" H (44.5mm x 28.0mm x 7.0mm)
MSL Level	Not Applicable
ECCN	EAR99
HTSUS	8504.40.9580
Other Names	1776-1922
Standard Package	1
Win Source Part Number	1205505-ZUW60515
Ultra Librarian 3D Model	Ultra Librarian ZUW60515 CAD Model

Alternative Products

Description

The ZUW60515 is a DC-DC converter module from Cosel USA Inc.

Module Type: Isolated
Number of Outputs: 2
Maximum Output Current: 200mA per output
Input Voltage Range: 4.5V to 9V
Output Voltage 1: 15V
Output Voltage 2: -15V
Mounting Type: Through-Hole
Package/Case: 5-DIP Module
Temperature Range: -20°C to 71°C
Efficiency: 75%
OCP Feature: Yes
Application: ITE (Commercial)
