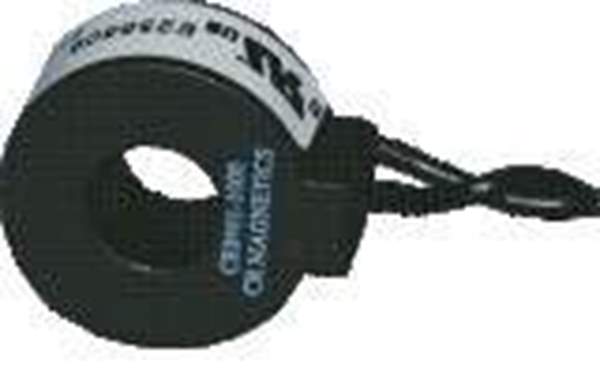

CR8401-1000-G Real Image
Same model may have multiple batches, images only for reference.

CR8401-1000-G

Part No CR8401-1000-G
Manufacturer CR Magnetics Inc.
Catalog Current Sense Transformers
Description Ground Fault Wire Lead Current Transformer, Solid Core, 1000 Turns, 0.6 Vmax RMS, 4.0 Arms Maximum Input Current Range, 0.275" ID
Datasheet
CR8401-1000-G Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Current Sense Transformers
Mfr CR Magnetics Inc.
Series -
Win Source Part Number 1384737-CR8401-1000-G
Package Bulk
Product Status Active
Frequency Range 20Hz ~ 1kHz
Type Non-Invasive (Solid Core)
Current Rating (Amps) 10A
Current Ratio 1000:1
DC Resistance (DCR) 49Ohm
Mounting Type Free Hanging (In-Line)
Size / Dimension 0.880" L x 0.690" W (22.35mm x 17.53mm)
Height - Seated (Max) 0.325" (8.26mm)
Termination Style Wire Leads
Ultra Librarian 3D Model Ultra Librarian CR8401-1000-G CAD Model
