Same model may have multiple batches, images only for reference.

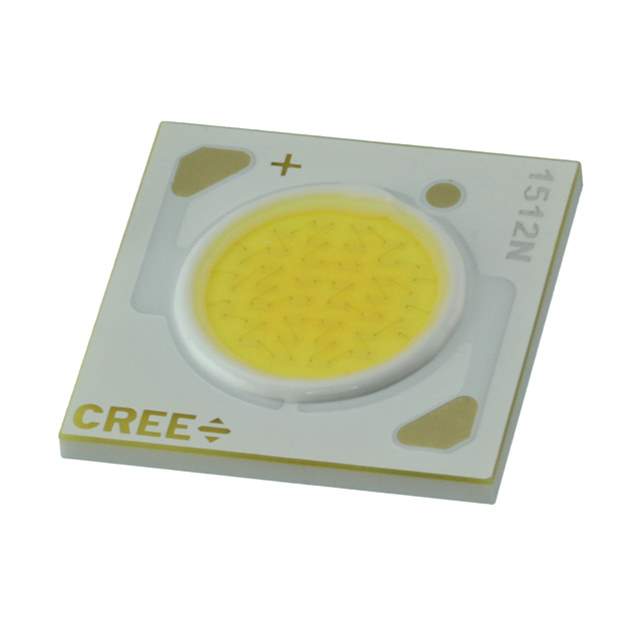

CXA1512-0000-000N0YH427G Real Image
Same model may have multiple batches, images only for reference.

CXA1512-0000-000N0YH427G

Part No CXA1512-0000-000N0YH427G
Manufacturer Cree Inc.
Catalog LED Lighting - COBs, Engines, Modules
Description LED COB CXA1512 2700K WHITE SMD / Chip On Board LED Lighting Module
Datasheet
CXA1512-0000-000N0YH427G Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Optoelectronics
Manufacturer Cree Inc.
Series XLamp CXA1512
Packaging Tray
Type Chip On Board (COB)
Color White, Warm
CCT (K) 2700K 3-Step MacAdam Ellipse
Configuration Square
Flux @ Current/Temperature - Test 1005 lm (970 lm ~ 1040 lm)
Current - Test 350mA
Temperature - Test 85°C
Voltage - Forward (Vf) (Typ) 36V
Lumens/Watt @ Current - Test 80 lm/W
Current - Max 600mA
CRI (Color Rendering Index) 93
Viewing Angle 115°
Dimension 15.85mm L x 15.85mm W
Height 1.70mm
Light Emitting Surface (LES) 8.90mm Diameter
Lens Type Flat
Win Source Part Number 771966-CXA1512-0000-000N0YH427G
Popularity Medium
Supply and Demand Status Balance
Family Name CXA1512-0000-000N0YH427G
ECCN EAR99
Ultra Librarian 3D Model Ultra Librarian CXA1512-0000-000N0YH427G CAD Model

Description

The CXA1512-0000-000N0YH427G chip on board (COB) is a part of the XLamp CXA1512 series and is designed for optoelectronics applications.

  • Configuration: Square
  • Viewing Angle: 115°
  • Voltage Forward (Vf): 36V
  • Current Max: 600mA
  • CCT: 2700K 3-Step MacAdam Ellipse
  • CRI: 93
  • Height: 1.70mm
  • LES Diameter: 8.90mm
  • Manufacturer: Cree Inc.
  • Packaging: Tray
  • Lumens/Watt: 80 lm/W
  • Flux @ Current/Temperature-Test: 1005 lm (970 lm ~ 1040 lm) @ 85°C
