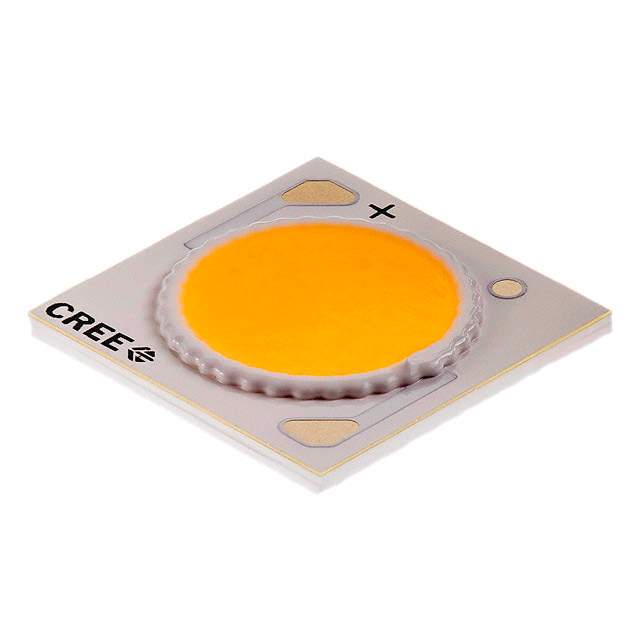

CXA1816-0000-000N0HP450F Real Image
Same model may have multiple batches, images only for reference.

CXA1816-0000-000N0HP450F

Part No CXA1816-0000-000N0HP450F
Manufacturer Cree Inc.
Catalog LED Lighting - COBs, Engines, Modules
Description LED COB CXA1816 COOL WHT SQUARE / Chip On Board LED Lighting Module
Datasheet
CXA1816-0000-000N0HP450F Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Optoelectronics
Manufacturer Cree Inc.
Series XLamp CXA1816
Packaging Tray
Type Chip On Board (COB)
Color White, Cool
CCT (K) 5000K 4-Step MacAdam Ellipse
Configuration Square
Flux @ Current/Temperature - Test 2033 lm (1965 lm ~ 2100 lm)
Current - Test 450mA
Temperature - Test 85°C
Voltage - Forward (Vf) (Typ) 37V
Lumens/Watt @ Current - Test 122 lm/W
Current - Max 900mA
CRI (Color Rendering Index) 80
Viewing Angle 115°
Dimension 17.85mm L x 17.85mm W
Height 1.70mm
Light Emitting Surface (LES) 12.00mm Diameter
Lens Type Flat
Win Source Part Number 776168-CXA1816-0000-000N0HP450F
Popularity Medium
Supply and Demand Status Limited
Family Name CXA1816-0000-000N0HP450F
Introduction Date June 20, 2013
ECCN EAR99
Halogen Free Compliant
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian CXA1816-0000-000N0HP450F CAD Model

Description

The Cree XLamp CXA1816 is a chip-on-board (COB) LED that comes in a square configuration.

  • LED Type: Chip-on-Board (COB)
  • Configuration: Square
  • Viewing Angle: 115 degrees
  • Forward Voltage: 37V
  • Height: 1.70mm
  • LES Diameter: 12.00mm
  • CCT: 5000K
  • Current-Max: 900mA
  • Current-Test: 450mA
  • Lumens/Watt @ Current-Test: 122 lm/W
  • CRI: 80
  • Flux @ Current/Temperature-Test: 2033 lm
  • Temperature-Test: 85 degrees Celsius
  • Halogen-Free: Yes
  • Market Popularity: Medium
  • Estimated EOL Date: 2027
