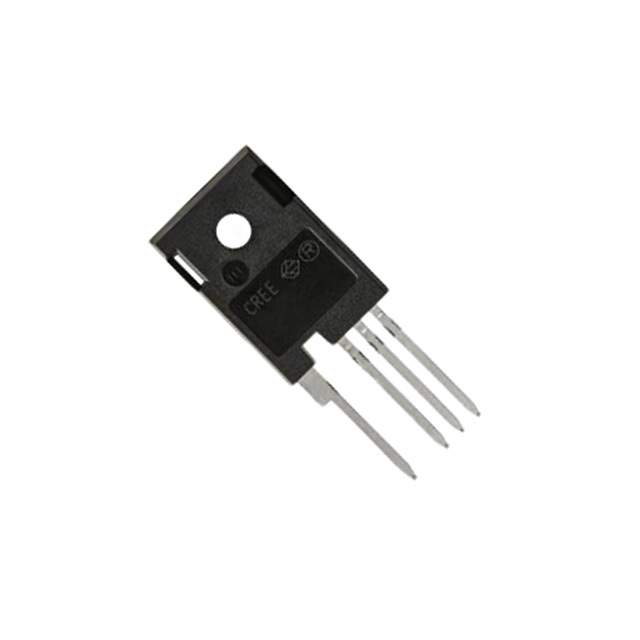

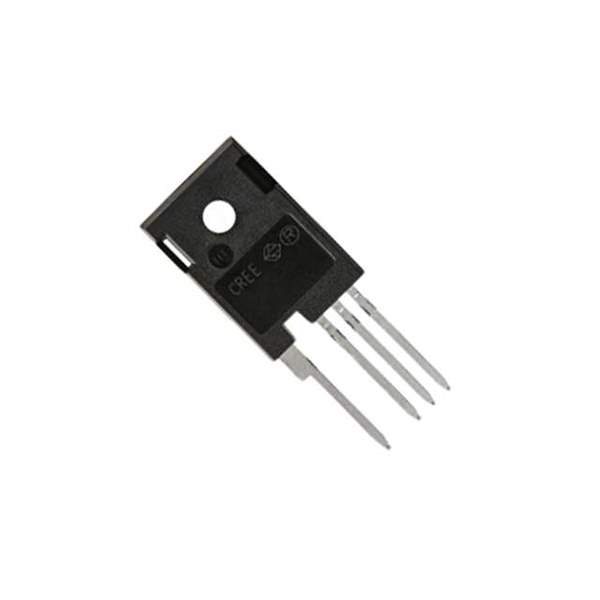

C3M0016120K

Name: C3M0016120K
Brand: Cree/Wolfspeed
SKU: 1324551
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

Part No	C3M0016120K
Manufacturer	Cree/Wolfspeed
Catalog	Transistors - FETs, MOSFETs - RF
Description	SICFET N-CH 1.2KV 115A TO247-4 / N-Channel 1200 V 115A (Tc) 556W (Tc) Through Hole TO-247-4L
Datasheet	C3M0016120K Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Discrete Semiconductor Products>Transistors - FETs, MOSFETs - Single
Manufacturer	Wolfspeed, Inc.
Packaging	Tube
FET Type	N-Channel
Technology	SiCFET (Silicon Carbide)
Drain to Source Voltage (Vdss)	1200 V
Current - Continuous Drain (Id) @ 25°C	115A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	15V
Rds On (Max) @ Id, Vgs	22.3mOhm @ 75A, 15V
Vgs(th) (Max) @ Id	3.6V @ 23mA
Gate Charge (Qg) (Max) @ Vgs	211 nC @ 15 V
Vgs (Max)	+15V, -4V
Input Capacitance (Ciss) (Max) @ Vds	6085 pF @ 1000 V
Power Dissipation (Max)	556W (Tc)
Temperature Range - Operating	-40°C ~ 175°C (TJ)
Mounting	Through Hole
Supplier Device Package	TO-247-4L
Case / Package	TO-247-4
Base Product Number	C3M0016120
RoHS Status	RoHS Compliant
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8541.29.0095
Other Part Number	-3312-C3M0016120K,1697-C3M0016120K
Standard Package	30
Win Source Part Number	1324551-C3M0016120K
Ultra Librarian 3D Model	Ultra Librarian C3M0016120K CAD Model

Alternative Products

Description

Wolfspeed, Inc.'s 1324551-C3M0016120K is a Silicon Carbide FET type N-channel transistor with a drain to source voltage (Vdss) of 1200V.

Continuous Drain Current (Id): 115A (Tc) @ 25°C
Maximum On-Resistance (Rds On): 22.3mOhm @ 75A and 15V
Maximum Gate-Source Voltage (Vgs): +15V and -4V
Drive Voltage: 15V
Maximum Frequency: 230MHz
Supplier Device Package: TO-247-4L
Maximum Power Dissipation: 556W (Tc)
