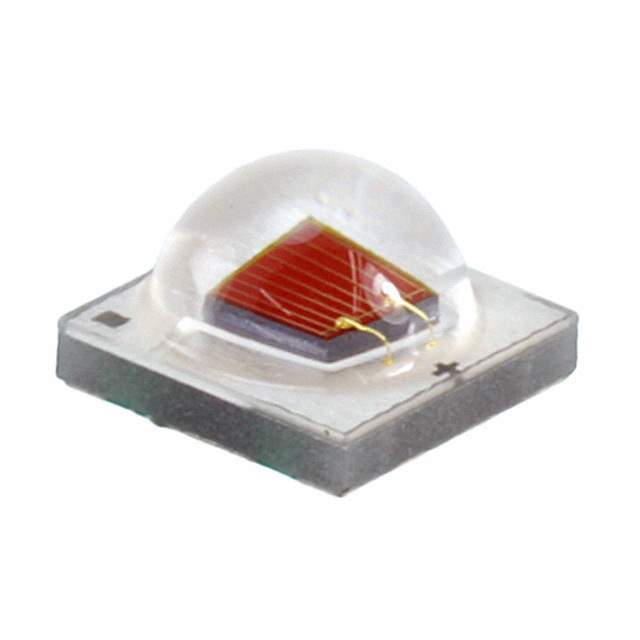

Same model may have multiple batches, images only for reference.

XPEBRD-L1-0000-00601

Name: XPEBRD-L1-0000-00601
Brand: CreeLED, Inc.
SKU: 1331941
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

Part No	XPEBRD-L1-0000-00601
Manufacturer	CreeLED, Inc.
Catalog	LED Lighting - Color
Description	LED XLAMP XPE2 RED 625NM SMD / LED Lighting Color XLamp® XP-E2 Red 625nm (620nm ~ 630nm) 1414 (3535 Metric)
Datasheet	XPEBRD-L1-0000-00601 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Optoelectronics>LED Lighting - Color
Manufacturer	CreeLED, Inc.
Packaging	Reel - TR
Color	Red
Wavelength	625nm (620nm ~ 630nm)
Current - Test	350mA
Voltage - Forward (Vf) (Typ)	2.2V
Lumens/Watt @ Current - Test	84 lm/W
Current - Max	1A
Luminous Flux @ Current/Temperature	65lm (62lm ~ 67lm)
Temperature - Test	25°C
Viewing Angle	130°
Mounting	Surface Mount
Case / Package	1414 (3535 Metric)
Supplier Device Package	SMD
Size / Dimension	0.136" L x 0.136" W (3.45mm x 3.45mm)
Height - Seated (Max)	0.094" (2.39mm)
Thermal Resistance of Package	5°C/W
Base Product Number	XPEBRD
RoHS Status	RoHS Compliant
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8541.41.0000
Other Part Number	XPEBRD-L1-0000-00601DKR,XPEBRD-L1-0000-00601TR,XPEBRD-L1-0000-00601CT
Standard Package	1,000
Win Source Part Number	1331941-XPEBRD-L1-0000-00601
Ultra Librarian 3D Model	Ultra Librarian XPEBRD-L1-0000-00601 CAD Model

Alternative Products

Description

The XPEBRD-L1-0000-00601 is a product of CreeLED, Inc., a renowned manufacturer of optoelectronics.

Mounting: Surface-mount
Package: Standard package of 1,000
Color: Red
Viewing Angle: 130 degrees
Maximum Current: 1A
Voltage Forward: 2.2V
Thermal Resistance: 5 degrees Celsius per watt
Luminous Flux: 65lm @ 350mA @ 25 degrees Celsius
