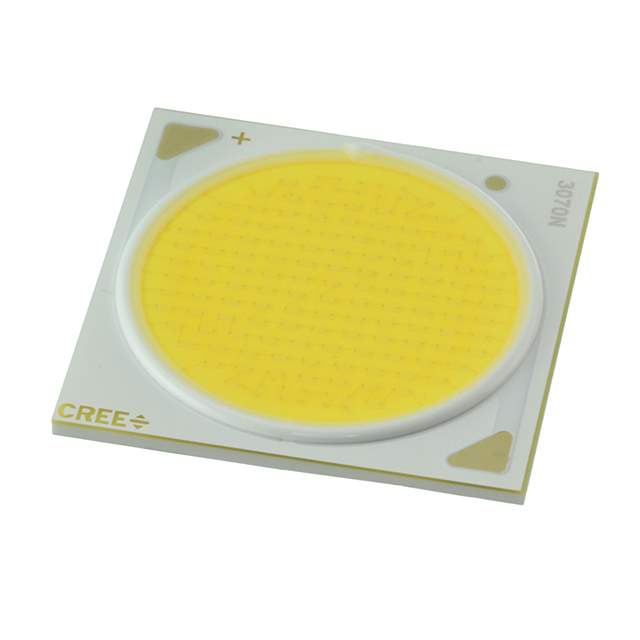

CXA3070-0000-000N00Z230F Real Image
Same model may have multiple batches, images only for reference.

CXA3070-0000-000N00Z230F

Part No CXA3070-0000-000N00Z230F
Manufacturer CreeLED, Inc.
Catalog LED Lighting - COBs, Engines, Modules
Description LED COB CXA3070 WARM WHT SQUARE / LED Lighting COBs Engines Modules Chip On Board (COB) series White, Warm Square
Datasheet
CXA3070-0000-000N00Z230F Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LED Lighting - COBs, Engines, Modules, Strips
Mfr CreeLED, Inc.
Series XLamp® CXA3070
Package Tray
Product Status Obsolete
Type Chip On Board (COB)
Color White, Warm
CCT (K) 3000K 4-Step MacAdam Ellipse
Configuration Square
Luminous Flux @ Current/Temperature 7668lm (7390lm ~ 7945lm)
Current - Test 1.925A
Temperature - Test 85°C
Voltage - Forward (Vf) (Typ) 38.5V
Lumens/Watt @ Current - Test 103 lm/W
Current - Max 2.8A
CRI (Color Rendering Index) 80
Viewing Angle 115°
Dimension 23.85mm L x 23.85mm W
Height 1.70mm
Light Emitting Surface (LES) 23.00mm Dia
Lens Type Flat
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Standard Package 100
Win Source Part Number 1213254-CXA3070-0000-000N00Z230F
Ultra Librarian 3D Model Ultra Librarian CXA3070-0000-000N00Z230F CAD Model

Description

The CreeLED, Inc. CXA3070-0000-000N00Z230F is a chip on board (COB) type optoelectronic component that is designed for LED lighting.

  • Type: Chip on Board (COB)
  • Application: LED Lighting
  • Configuration: Square
  • Viewing Angle: 115°
  • Forward Voltage: 38.5V
  • CCT (K): 3000K 4-Step MacAdam Ellipse
  • Luminous Flux: 7668lm (7390lm ~ 7945lm)
  • CRI (Color Rendering Index): 80
