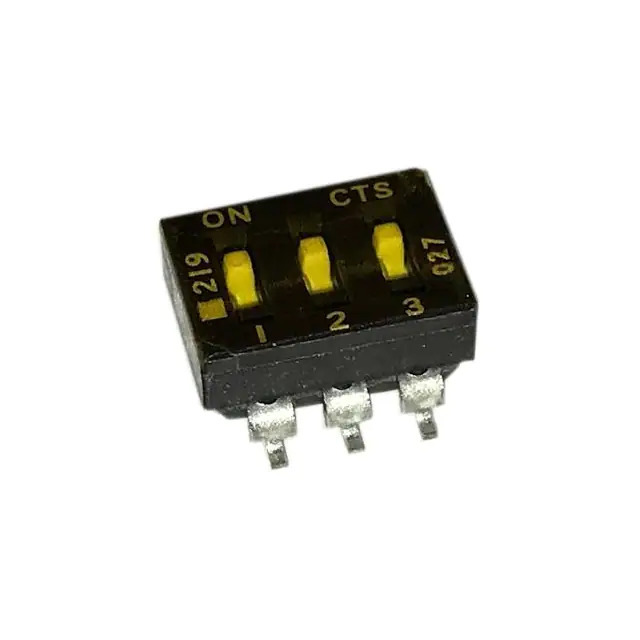

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Switches - DIP Switches
Mfr CTS Electrocomponents
Series 219
Package Tape & Reel
Product Status Active
Circuit SPST
Number of Positions 3
Current Rating (Amps) 100mA
Voltage Rating 20VDC
Actuator Type Slide (Standard)
Actuator Level Raised
Contact Material Beryllium Copper
Contact Finish Gold
Height Above Board 0.170" (4.33mm)
Mounting Type Surface Mount
Termination Style Gull Wing
Pitch 0.100" (2.54mm), Full
Washable Yes
Features Epoxy Sealed Terminals, Tape Seal
Temperature Range - Operating -55°C ~ 85°C
Body Material -
Length 0.358" (9.09mm)
Mechanical Life -
Electrical Life 2,000 Cycles
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9065
Win Source Part Number 1376346-219-3MSTR
Ultra Librarian 3D Model Ultra Librarian 219-3MSTR CAD Model

Description

The 219 series DIP switch is a surface mount switch with a slide actuator from CTS Electrocomponents.

  • Switch Type: DIP
  • Mounting Type: Surface Mount
  • Actuator: Slide
  • Number of Positions: 3
  • Current Rating: 100mA
  • Contact Finish: Gold
  • Contact Material: Beryllium Copper
  • Voltage Rating: 20VDC
  • Pitch: 0.100" (2.54mm)
  • Circuit: SPST (single-pole single-throw)
  • Termination Style: Gull Wing
  • Height Above Board: 0.170" (4.33mm)
  • Washable: Yes
  • Length: 0.358" (9.09mm)
  • Features: Epoxy Sealed Terminals, Tape Seal
