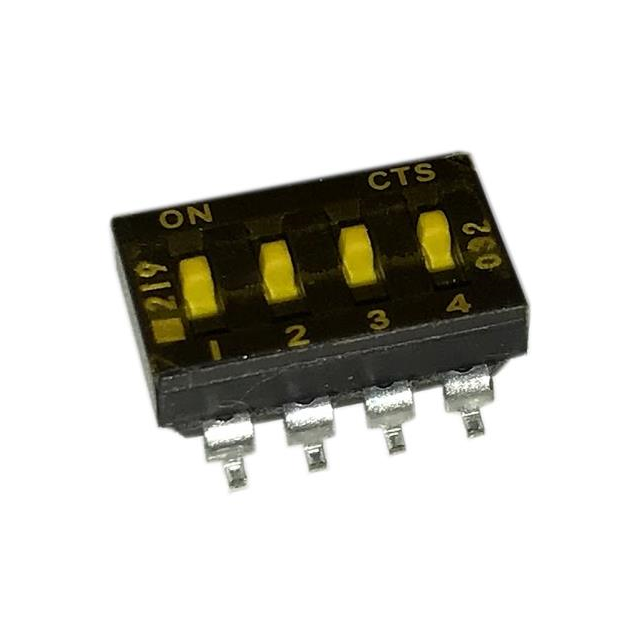

219-4MSTR Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Switches>DIP Switches
Mfr CTS Electrocomponents
Series 219
Package Tape & Reel
Circuit SPST
Number of Positions 4
Current Rating (Amps) 100mA
Voltage Rating 20VDC
Actuator Type Slide (Standard)
Actuator Level Raised
Contact Material Beryllium Copper
Contact Finish Gold
Height Above Board 0.170" (4.33mm)
Mounting SMD (SMT)
Termination Style Gull Wing
Pitch 0.100" (2.54mm), Full
Washable Yes
Features Epoxy Sealed Terminals, Tape Seal
Temperature Range - Operating -55°C ~ 85°C
Length 0.458" (11.63mm)
Electrical Life 2,000 Cycles
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9065
Other Names 219-4MSTR-ND,CT3117DKR,Q1312083,219004MSTR,CT3117TR,219-004MSTR,CT3117CT,2194MSTR
Standard Package 1,000
Win Source Part Number 1035794-219-4MSTR
Ultra Librarian 3D Model Ultra Librarian 219-4MSTR CAD Model

Description

The 219 series DIP switch from CTS Electrocomponents is a single-pole, single-throw (SPST) switch that has 4 positions.

  • Manufacturer: CTS Electrocomponents
  • Series: 219
  • Type: DIP Switch
  • Circuit: SPST
  • Positions: 4
  • Pitch: 0.100" (2.54mm)
  • Termination Style: Gull Wing
  • Terminal Seal: Epoxy Sealed
  • Seal: Tape Seal
  • Contact Finish: Gold
  • Voltage Rating: 20VDC
  • Actuator Level: Raised
  • Washable: Yes
  • Temperature Range: -55°C to 85°C
  • ECCN: EAR99
