Same model may have multiple batches, images only for reference.

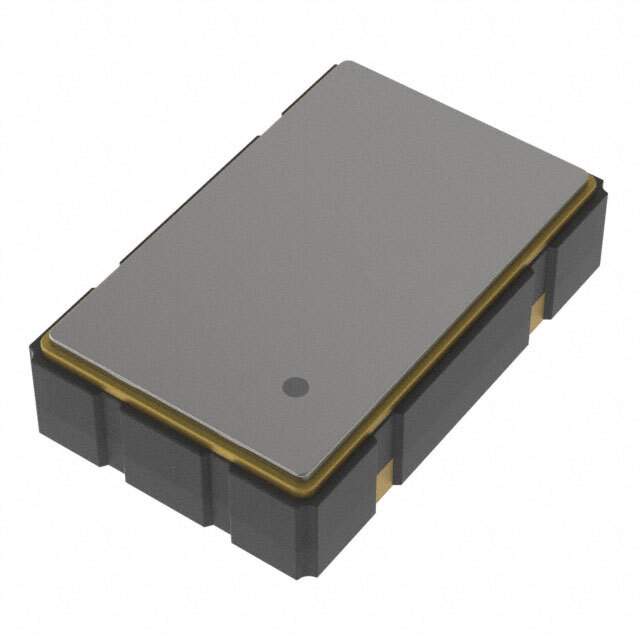

CA50C2403IMT Real Image
Same model may have multiple batches, images only for reference.

CA50C2403IMT

Part No CA50C2403IMT
Manufacturer CTS-Frequency Controls
Catalog Oscillators
Description XTAL OSC XO 24.0000MHZ HCMOS TTL / 24 MHz XO (Standard) HCMOS, TTL Oscillator 1.8V Enable/Disable 4-SMD, No Lead
Datasheet
CA50C2403IMT Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators - Oscillators
Mfr CTS-Frequency Controls
Series CA50
Package Tape & Reel
Base Resonator Crystal
Type XO (Standard)
Frequency 24 MHz
Function Enable/Disable
Output HCMOS, TTL
Voltage - Supply 1.8V
Frequency Stability ±50ppm
Temperature Range - Operating -40°C ~ 85°C
Current - Supply (Max) 25mA
Ratings AEC-Q200
Mounting Type Surface Mount
Package / Case 4-SMD, No Lead
Size / Dimension 0.197" L x 0.126" W (5.00mm x 3.20mm)
Height - Seated (Max) 0.051" (1.30mm)
Current - Supply (Disable) (Max) 10µA
Standard Package 1,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
California Prop 65 Warning Information
Win Source Part Number 1349326-CA50C2403IMT
Ultra Librarian 3D Model Ultra Librarian CA50C2403IMT CAD Model

Description

The CA50C2403IMT is a high-quality oscillator from the CA50 series of crystals, oscillators, and resonators. This device is an XO (Standard) type oscillator that comes in a surface mount package, with a tape and reel design, and a size of 0.197 inches in length and 0.126 inches in width.

  • Frequency: 24 MHz
  • Frequency Stability: ±50ppm
  • Function: Enable/Disable
  • Output: HCMOS, TTL
  • Maximum Supply Current: 25mA
  • Maximum Supply Voltage: 1.8V
  • Operating Temperature: -40°C to 85°C
  • AEC-Q200: Rated
