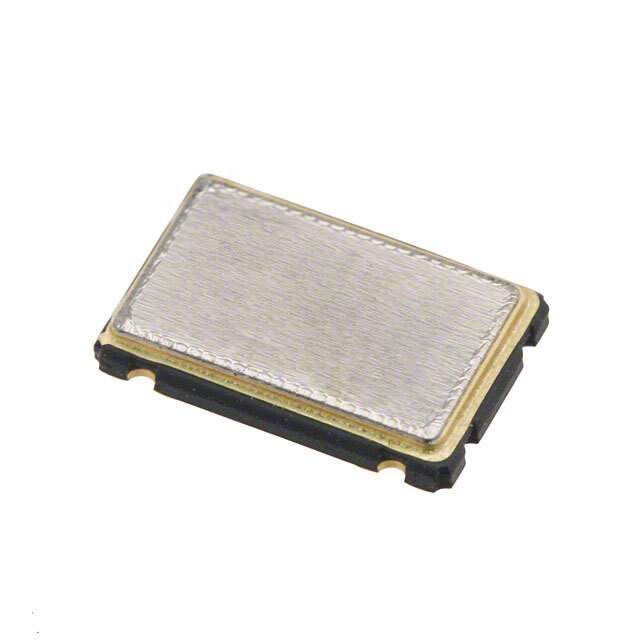

CB3-3C-20M0000 Real Image
Same model may have multiple batches, images only for reference.

CB3-3C-20M0000

Part No CB3-3C-20M0000
Manufacturer CTS-Frequency Controls
Catalog Oscillators
Description OSC XO 20.000MHZ HCMOS TTL SMD
Datasheet
CB3-3C-20M0000 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Crystals, Oscillators, Resonators
Manufacturer CTS-Frequency Controls
Series CB3
Packaging Reel package
Type XO (Standard)
Frequency 20MHz
Function Enable/Disable
Output HCMOS, TTL
Operating Supply Voltage 5V
Frequency Stability ±50ppm
Operating Temperature Range -20°C ~ 70°C
Maximum Supply Current 25mA
Mounting SMD
Package 4-SMD, No Lead
Dimension 0.276" L x 0.197" W (7.00mm x 5.00mm)
Height - Seated (Maximum) 0.071" (1.80mm)
Current - Supply (Disable) (Maximum) 10μA
Win Source Part Number 771227-CB3-3C-20M0000
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian CB3-3C-20M0000 CAD Model

Description

The CB3 series oscillator is a highly reliable integrated circuit with a frequency stability of ±50ppm. The CTS-Frequency Controls CB3-3C-20M0000 is a surface-mount device.

  • Frequency: 20MHz
  • Height: 0.071" (1.80mm)
  • Operating Temperature Range: -20°C to 70°C
  • Operating Supply Voltage: 5V
  • Features: Enable/Disable Function
  • Output: HCMOS, TTL
  • Manufacturer: CTS-Frequency Controls
  • Package: 4-SMD, No Lead
