Same model may have multiple batches, images only for reference.

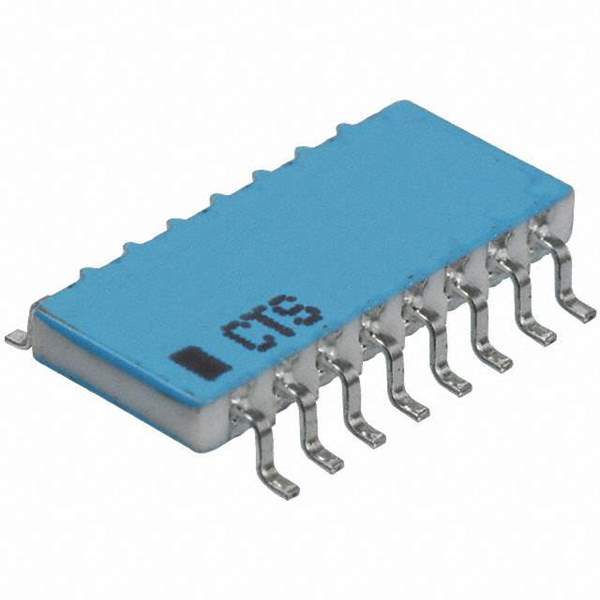

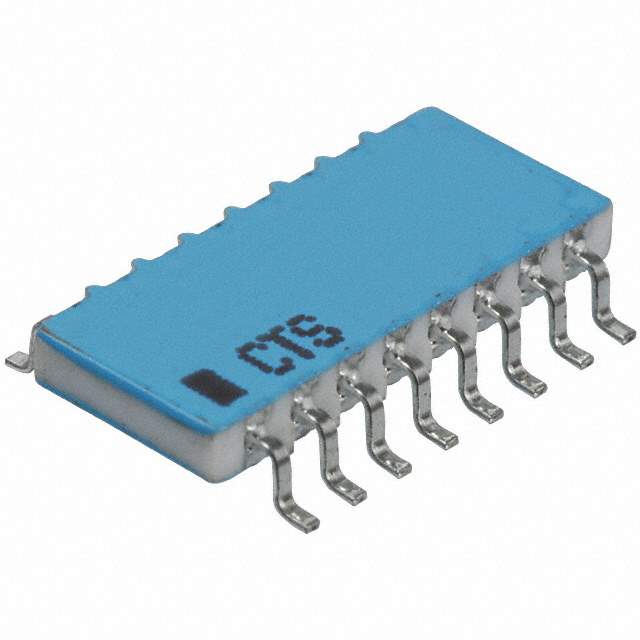

767161103G Real Image
Same model may have multiple batches, images only for reference.

767161103G

Part No 767161103G
Manufacturer CTS Resistor Products
Catalog Resistor Networks, Arrays
Description Series 767 Surface Mount Resistor Network | RES ARRAY 15 RES 10K OHM 16SOIC
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Resistors
Manufacturer CTS Resistor Products
Packaging Tube
Status Obsolete
Circuit Type Bussed
Resistance (Ohms) 10k
Tolerance ±2%
Number of Resistors 15
Number of Pins 16
Power Per Element 100mW
Temperature Coefficient ±100ppm/°C
Temperature Range - Operating -55°C ~ 125°C
Mounting Style SMD
Manufacturer Package 16-SOIC (0.220", 5.59mm Width)
Parts Dimension 0.440" L x 0.220" W (11.18mm x 5.59mm)
Height - Seated (Maximum) 0.093" (2.36mm)
Manufacturer Pack Quantity 43
MSL Level 1 (Unlimited)
Win Source Part Number 1133656-767161103G
Manufacturer Homepage www.ctscorp.com
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian 767161103G CAD Model

Description

The CTS Resistor Products 541091 is a bussed circuit type resistor with a resistance of 10k ohms and a tolerance of ±2%.

  • Circuit Type: Bussed
  • Resistance: 10k ohms
  • Tolerance: ±2%
  • Temperature Coefficient: ±100ppm/°C
  • Power per Element: 100mW
  • Package: Tube
  • Mounting: SMD
  • Resistors: 15
  • Pins: 16
  • Manufacturer Package: 16-SOIC (0.220", 5.59mm Width)
  • Status: Obsolete
  • Temperature Range: -55°C to 125°C
  • Applications: Resistors
