Same model may have multiple batches, images only for reference.

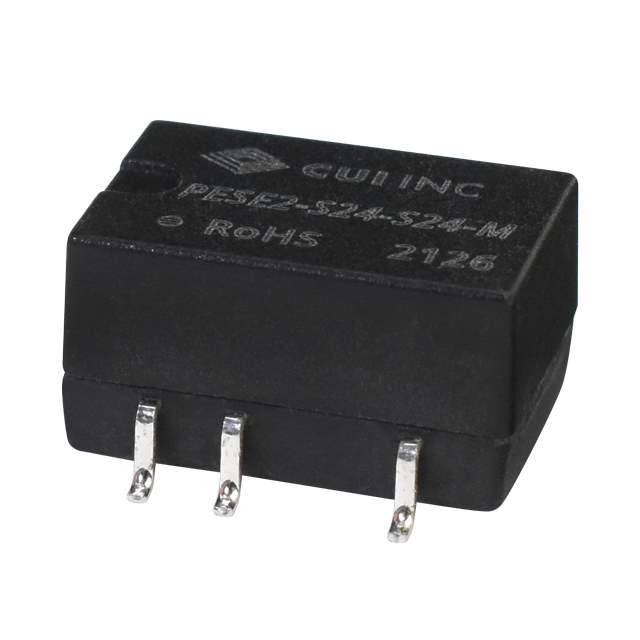

PESE2-S24-S15-M Real Image
Same model may have multiple batches, images only for reference.

PESE2-S24-S15-M

Part No PESE2-S24-S15-M
Manufacturer CUI Inc.
Catalog Power Supplies Board Mount DCDC Converters
Description DC-DC 3KV ISOLATED, 2 W, 21.6~26 / Isolated Module DC DC Converter 1 Output 15V 133mA 21.6V - 26.4V Input
Datasheet
PESE2-S24-S15-M Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount - DC DC Converters
Mfr CUI Inc.
Series PESE2-M (2W)
Package Tube
Type Isolated Module
Number of Outputs 1
Voltage - Input (Min) 21.6V
Voltage - Input (Max) 26.4V
Voltage - Output 1 15V
Current - Output (Max) 133mA
Power (Watts) 1.995 W
Voltage - Isolation 3 kV
Applications ITE (Commercial)
Features Adjustable Output
Temperature Range - Operating -40°C ~ 105°C (With Derating)
Efficiency 84%
Mounting Type Surface Mount
Package / Case 8-SMD Module, 5 Leads
Size / Dimension 0.52" L x 0.33" W x 0.29" H (13.2mm x 8.5mm x 7.3mm)
Approval Agency CE
Standard Number 62368-1
Standard Package 38
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.40.9580
Win Source Part Number 1349808-PESE2-S24-S15-M
Ultra Librarian 3D Model Ultra Librarian PESE2-S24-S15-M CAD Model

Description

CUI Inc. presents the PESE2-M (2W) series isolated module DC-DC converter.

  • Adjustable Output: Yes
  • Applications: ITE (Commercial)
  • Standard Package: 38
  • Power: 1.995 W
  • Efficiency: 84%
  • Voltage Isolation: 3 kV
  • Number of Outputs: 1
  • Maximum Output Current: 133mA
  • Input Voltage: 21.6V to 26.4V
  • Output Voltage: 15V
  • Mounting Type: Surface Mount
  • Package/Case: 8-SMD Module, 5 Leads
  • Operating Temperature: -40°C to 105°C (with derating)
  • Approvals: CE
  • Standard Number: 62368-1
