Same model may have multiple batches, images only for reference.

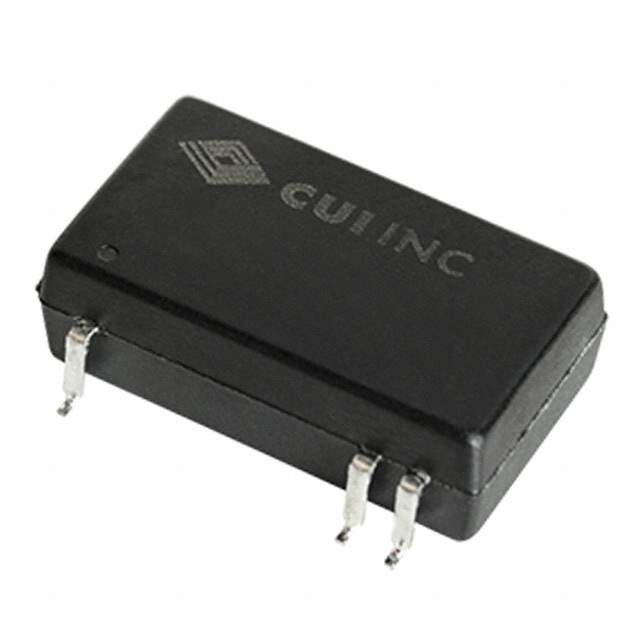

PQM3-D48-S15-M-TR Real Image
Same model may have multiple batches, images only for reference.

PQM3-D48-S15-M-TR

Part No PQM3-D48-S15-M-TR
Manufacturer CUI Inc.
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER 15V 3W / Isolated Module DC DC Converter 1 Output 15V 200mA 36V - 75V Input
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount - DC DC Converters
Mfr CUI Inc.
Series PQM3-M (3W)
Package Tape & Reel
Product Status Obsolete
Type Isolated Module
Number of Outputs 1
Voltage - Input (Min) 36V
Voltage - Input (Max) 75V
Voltage - Output 1 15V
Current - Output (Max) 200mA
Power (Watts) 3 W
Voltage - Isolation 1.5 kV
Applications ITE (Commercial)
Features SCP
Temperature Range - Operating -40°C ~ 105°C (With Derating)
Efficiency 80%
Mounting Type Surface Mount
Package / Case 16-SMD Module, 6 Leads
Size / Dimension 0.94" L x 0.54" W x 0.31" H (23.9mm x 13.7mm x 8.0mm)
Approval Agency EN
Standard Number 55024; 55032 Class A
Base Product Number PQM3-D48
Standard Package 200
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.40.9580
Win Source Part Number 1340861-PQM3-D48-S15-M-TR
Ultra Librarian 3D Model Ultra Librarian PQM3-D48-S15-M-TR CAD Model

Description

The PQM3-D48-S15-M-TR is an isolated module DC DC converter manufactured by CUI Inc.

  • Product Name: PQM3-D48-S15-M-TR
  • Power: 3 Watts
  • Voltage Isolation: 1.5 kV
  • Number of Outputs: 1
  • Output Current: 200mA
  • Input Voltage Range: 36V to 75V
  • Output Voltage: 15V
  • Efficiency: 80%
  • Package: Tape and Reel
  • Application: ITE (Commercial)
  • Win Source Part Number: 1340861
