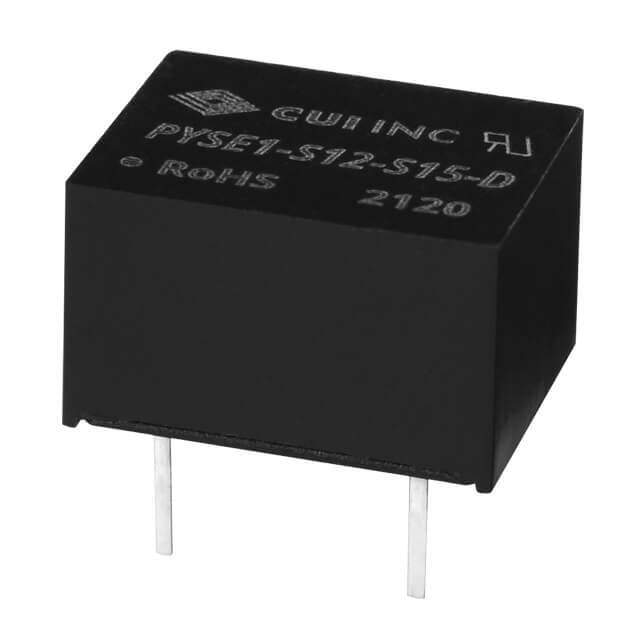

Same model may have multiple batches, images only for reference.

PYSE1-S24-S15-D

Name: PYSE1-S24-S15-D
Brand: CUI Inc.
SKU: 1342548
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

Part No	PYSE1-S24-S15-D
Manufacturer	CUI Inc.
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC-DC 1.5KV ISOLATED, 1 W, 21.6~ / Isolated Module DC DC Converter 1 Output 15V 67mA 21.6V - 26.4V Input
Datasheet	PYSE1-S24-S15-D Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount - DC DC Converters
Mfr	CUI Inc.
Series	PYSE1-D (1W)
Package	Tube
Type	Isolated Module
Number of Outputs	1
Voltage - Input (Min)	21.6V
Voltage - Input (Max)	26.4V
Voltage - Output 1	15V
Current - Output (Max)	67mA
Power (Watts)	1 W
Voltage - Isolation	1.5 kV
Applications	ITE (Commercial)
Temperature Range - Operating	-40°C ~ 105°C (With Derating)
Efficiency	81%
Mounting Type	Through Hole
Package / Case	8-DIP Module, 4 Leads
Size / Dimension	0.50" L x 0.40" W x 0.32" H (12.7mm x 10.2mm x 8.2mm)
Approval Agency	CE, cURus
Standard Number	62368-1
Standard Package	40
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8504.40.9580
Win Source Part Number	1342548-PYSE1-S24-S15-D
Ultra Librarian 3D Model	Ultra Librarian PYSE1-S24-S15-D CAD Model

Alternative Products

Description

The PYSE1-D (1W) isolated module DC-DC converter from CUI Inc. is a power supply board mount converter that is ideal for ITE (Commercial) applications.

Voltage - Isolation: 1.5 kV
Efficiency: 81%
Current - Output (Max): 67mA
Voltage - Input: 21.6V ~ 26.4V
Voltage - Output: 15V
Size / Dimension: 0.50" L x 0.40" W x 0.32" H (12.7mm x 10.2mm x 8.2mm)
Package: Tube
Mounting Type: Through Hole
Package / Case: 8-DIP Module, 4 Leads
Operating Temperature: -40°C ~ 105°C (with derating)
Approvals: CE, cURus
Standard Number: 62368-1
