Same model may have multiple batches, images only for reference.

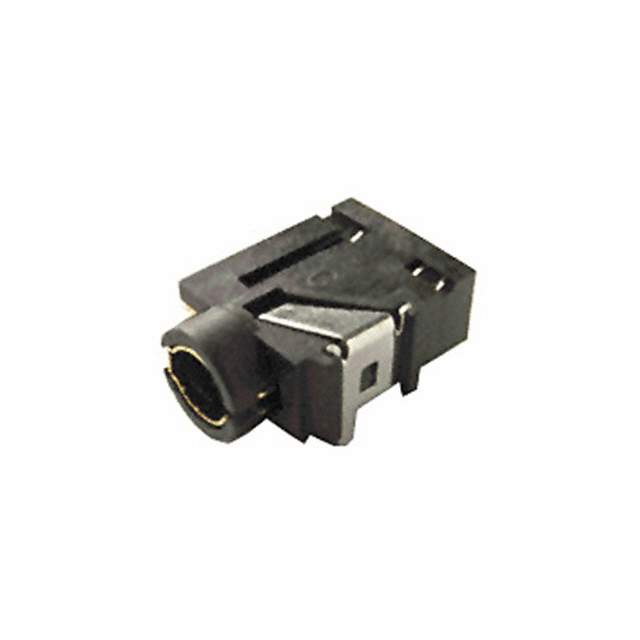

SJ-43515TS Real Image
Same model may have multiple batches, images only for reference.

SJ-43515TS

Part No SJ-43515TS
Manufacturer CUI Inc.
Catalog Barrel - Audio Connectors
Description CONN JACK 4COND 3.5MM R/A / 3.50mm (0.141", 1/8", Mini Plug) - Headphone Phone Jack Stereo (4 Conductor, TRRS) Connector Solder
Datasheet
SJ-43515TS Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Barrel Connectors>Audio Connectors
Manufacturer CUI Devices
Packaging Tray
Connector Type Phone Jack
Gender Female
Signal Lines Stereo (4 Conductor, TRRS)
Industry Recognized Mating Diameter 3.50mm (0.141", 1/8", Mini Plug) - Headphone
Actual Diameter 0.142" (3.60mm)
Number of Positions/Contacts 4 Conductors, 5 Contacts
Internal Switch(s) Single Switch
Mounting Through Hole, Right Angle
Termination Solder
Shielding Unshielded
Temperature Range - Operating -20°C ~ 85°C
Voltage - Rated 12VDC
Current Rating (Amps) 1 A
Mating Length/Depth 0.551" (14.00mm)
Contact Material - Plating Gold
Body Color Black
Housing Material Polyamide (PA66), Nylon 6/6
Contact Material Brass, Copper Alloy, Phosphor Bronze
Base Product Number SJ-43
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number 045-0651R,CP-43515TS-NDR,CP-43515TS,Q1025904A,SJ43515TS,SJ-43515TS-ND
Standard Package 270
Win Source Part Number 1333966-SJ-43515TS
Ultra Librarian 3D Model Ultra Librarian SJ-43515TS CAD Model

Description

The SJ-43515TS is a female phone jack connector manufactured by CUI Devices.

  • Conductor: 4
  • Contact: 5
  • Switch: Single
  • Shielding: Unshielded
  • Contact Material: Brass, Copper Alloy, and Phosphor Bronze
  • Housing Material: Polyamide (PA66) and Nylon 6/6
  • Mounting Type: Through Hole, Right Angle
  • Voltage Rated: 12VDC
  • Contact Material Plating: Gold
  • Industry Recognized Mating Diameter: 3.50mm (0.141 inches, 1/8 inches, mini plug) - headphone
