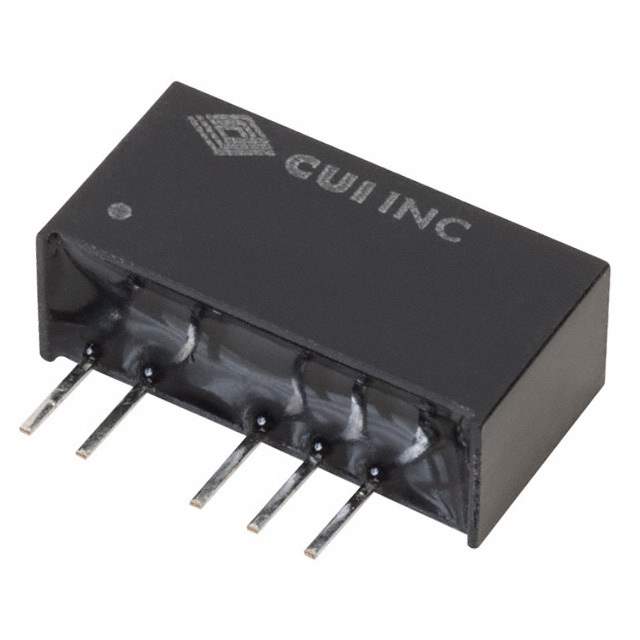

VASD1-S12-D5-SIP Real Image
Same model may have multiple batches, images only for reference.

VASD1-S12-D5-SIP

Part No VASD1-S12-D5-SIP
Manufacturer CUI Inc.
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER +/-5V 1W / Isolated Module DC DC Converter 2 Output 5V -5V 100mA, 100mA 10.8V - 13.2V Input
Datasheet
VASD1-S12-D5-SIP Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Manufacturer CUI Inc.
Packaging Tube
Product Status Obsolete
Type Isolated Module
Number of Outputs 2
Voltage - Input (Min) 10.8V
Voltage - Input (Max) 13.2V
Voltage - Output 1 5V
Voltage - Output 2 -5V
Current - Output (Max) 100mA, 100mA
Power (Watts) 1 W
Voltage - Isolation 1 kV
Applications ITE (Commercial)
Features SCP
Temperature Range - Operating -40°C ~ 85°C
Efficiency 74%
Mounting Through Hole
Case / Package 6-SIP Module, 5 Leads
Size / Dimension 0.77" L x 0.24" W x 0.38" H (19.5mm x 6.0mm x 9.7mm)
RoHS Status RoHS Compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.40.9580
Other Part Number 102-1342,656-90004R,VASD1S12D5SIP
Standard Package 25
Win Source Part Number 1317256-VASD1-S12-D5-SIP
Ultra Librarian 3D Model Ultra Librarian VASD1-S12-D5-SIP CAD Model

Description

The CUI Inc. VASD1-S12-D5-SIP is an obsolete power supply module.

  • Win Source Part Number: 1317256-VASD1-S12-D5-SIP
  • Type: DC/DC Converter
  • Features: SCP
  • Power Output: 1W
  • Application: ITE (Commercial)
  • Supply and Demand Status: Limited
  • ROHS: Compliant
