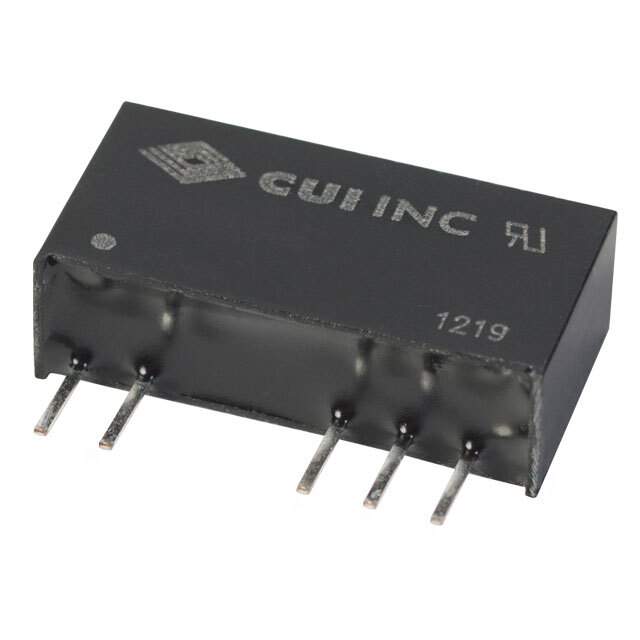

VESD1-S12-D5-SIP Real Image
Same model may have multiple batches, images only for reference.

VESD1-S12-D5-SIP

Part No VESD1-S12-D5-SIP
Manufacturer CUI Inc.
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER +/-5V 1W / Isolated Module DC DC Converter 2 Output 5V -5V 100mA, 100mA 10.8V - 13.2V Input
Datasheet
VESD1-S12-D5-SIP Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Manufacturer CUI Inc.
Packaging Tube
Product Status Obsolete
Type Isolated Module
Number of Outputs 2
Voltage - Input (Min) 10.8V
Voltage - Input (Max) 13.2V
Voltage - Output 1 5V
Voltage - Output 2 -5V
Current - Output (Max) 100mA, 100mA
Power (Watts) 1 W
Voltage - Isolation 3 kV
Applications ITE (Commercial)
Features SCP
Temperature Range - Operating -40°C ~ 85°C
Efficiency 74%
Mounting Through Hole
Case / Package 7-SIP Module, 5 Leads
Size / Dimension 0.77" L x 0.24" W x 0.39" H (19.6mm x 6.0mm x 10.0mm)
RoHS Status RoHS Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Other Part Number 2266-VESD1-S12-D5-SIP,656-90073R,102-1411,VESD1S12D5SIP
Standard Package 25
Win Source Part Number 1336477-VESD1-S12-D5-SIP
Ultra Librarian 3D Model Ultra Librarian VESD1-S12-D5-SIP CAD Model

Description

The VESD1-S12-D5-SIP is a 1W Isolated DC/DC Converter Module manufactured by CUI Inc.

  • Applications: Commercial ITE applications.
  • Package: 7-SIP module package with 5 leads.
  • Voltage Isolation: 3 kV.
  • Features: SCP.
  • Outputs: Two outputs of 5V and -5V.
  • Maximum Output Current: 100mA each.
  • Input Voltage Range: 10.8V to 13.2V.
  • Efficiency: 74%.
  • Operating Temperature Range: -40°C to 85°C.
  • RoHS Compliant: RoHS compliant.
  • Product Status: Obsolete.
