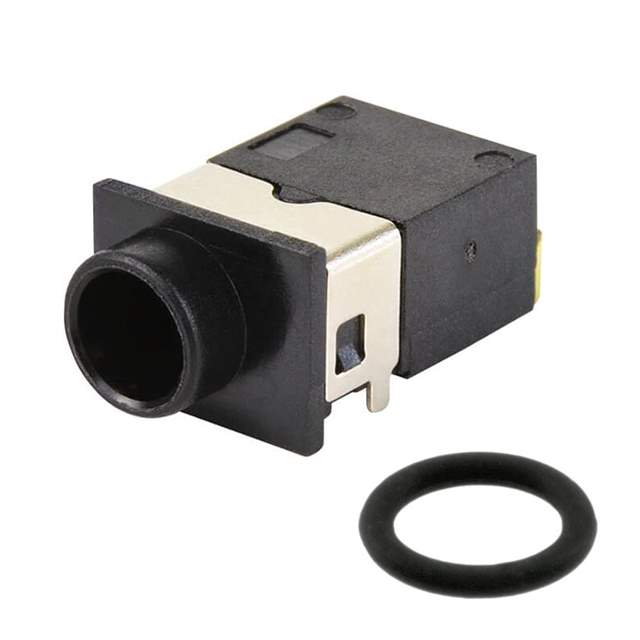

PJ-001AH-67

Name: PJ-001AH-67
Brand: CUI Inc.
SKU: 1083819
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	PJ-001AH-67
Manufacturer	CUI Inc.
Catalog	Barrel - Power Connectors
Description	POWER JACK, IP67, 2.0 X 5.5, 3.5 / Power Barrel Connector Jack 2.00mm ID (0.079"), 5.50mm OD (0.217") Through Hole, Right Angle
Datasheet	PJ-001AH-67 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Barrel - Power Connectors
Mfr	CUI Devices
Package	Tape & Reel
Connector Type	Jack
Gender	Male
Industry Recognized Mating Diameter	2.00mm ID (0.079"), 5.50mm OD (0.217")
Actual Diameter	0.079" (2.00mm ID), 0.248" (6.30mm OD)
Number of Positions/Contacts	2 Conductors, 3 Contacts
Internal Switch(s)	Single Switch, Normally Closed
Mounting Type	Through Hole, Right Angle
Termination	Solder
Shielding	Shielded
Features	Board Guide
Voltage - Rated	24VDC
Current Rating (Amps)	5 A
Mating Length/Depth	0.394" (10.00mm)
Ingress Protection	IP67 - Dust Tight, Waterproof
Material Flammability Rating	UL94 V-0
Contact Material - Plating	Gold
Temperature Range - Operating	-25°C ~ 85°C
Includes	2 pcs - 1 Connector, 1 O-Ring
Housing Material	Polyamide (PA10T), Nylon 10T
Contact Material	Brass, Copper Alloy
Body Color	Black
Base Product Number	PJ-001
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Other Names	102-6041-6,102-6041-1,102-6041-2
Standard Package	450
Win Source Part Number	1083819-PJ-001AH-67
Ultra Librarian 3D Model	Ultra Librarian PJ-001AH-67 CAD Model

Alternative Products

Description

This male jack connector is designed for use in power barrel applications.

Contact Material: Brass and copper alloy
Contact Plating: Gold
Shielded: Yes
Ingress Protection: IP67
Housing Material: Polyamide and nylon
Flammability Rating: UL94 V-0
Mounting: Through-hole, right-angle
Voltage Rating: 24VDC
Conductors: 2
Contacts: 3
Pieces: 2 (1 connector and 1 O-ring)
Mating Diameter: 2.00mm ID and 5.50mm OD
Mating Length/Depth: 0.394" (10.00mm)
Temperature Range: -25°C to 85°C
