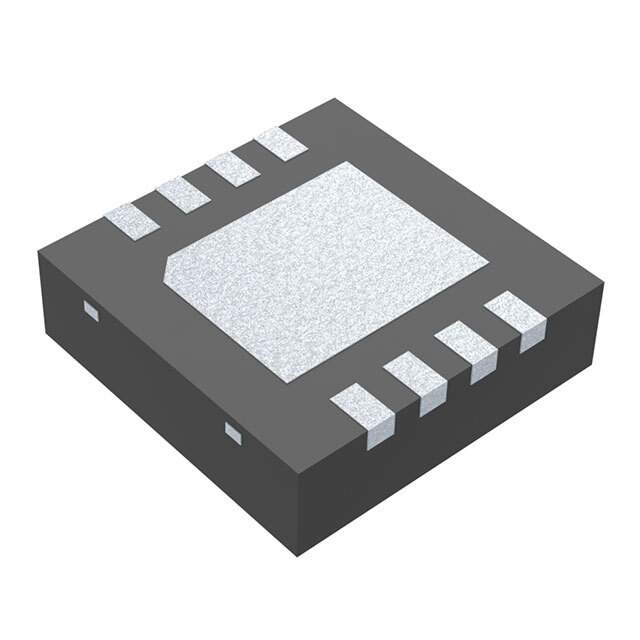

LM5085SDE/NOPB

Part No LM5085SDE/NOPB
Manufacturer Texas Instruments
Catalog PMIC - Voltage Regulators - DC DC Switching Controllers
Description IC REG CTRLR BUCK 8WSON
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Texas Instruments
Packaging Reel - TR
Status Active
Output Type Transistor Driver
Purpose Step-Down
Topology Buck
Number of Outputs 1
Output Phases 1
Supply Voltage - Operating 4.5 V to 75 V
Frequency - Switching Up to 1MHz
Duty Cycle (Max) 100%
Synchronous Rectifier No
Clock Sync No
Control Features Current Limit, Enable, On Time Control
Temperature Range - Operating -40°C to 125°C (TJ)
Case / Package 8-WSON (3x3)
Win Source Part Number 019381-LM5085SDE/NOPB
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian LM5085SDE/NOPB CAD Model

Description

The LM5085SDE/NOPB is a high-performance, versatile product from Texas Instruments, a renowned leader in the semiconductor industry.

  • Category: Wide VIN family of regulators
  • Function: High voltage PFET controller
  • Input Voltage Range: 6V to 75V, withstands transient events up to 100V
  • PFET Controller: Integrated high-voltage PFET controller for efficient operation
  • Light Load Efficiency: Designed for high efficiency @ light loads
  • Output Voltage: Adjustable output voltage with two external resistors
  • Operation Modes: Operates in both continuous and discontinuous modes
  • Soft-Start Function: Programmable soft-start function
  • Protection Features: Thermal shutdown, current limit protection, and under-voltage lockout (UVLO)
  • Package: Compact, space-saving LLP-10 package
