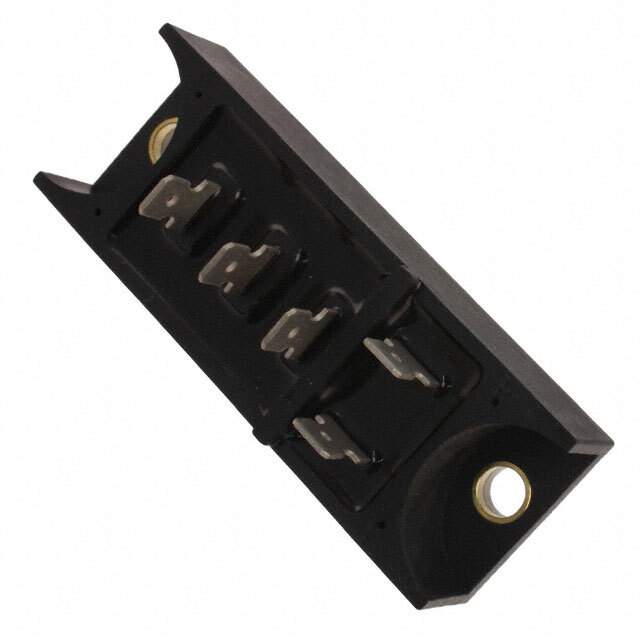

Same model may have multiple batches, images only for reference.

ME701203

Name: ME701203
Brand: Powerex Inc.
SKU: 638995
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	ME701203
Manufacturer	Powerex Inc.
Catalog	Bridge Rectifiers
Description	Three-Phase Diode Bridge Modules (30 Amperes/1200-1600 Volts) \| BRIDGE RECT 3P 1.2KV 30A MODULE
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Discrete Semiconductor Products
Manufacturer	Powerex Inc.
Packaging	Bulk
Status	Obsolete
Diode Type	Three Phase
Technology	Standard
Voltage - Peak Reverse (Maximum)	1.2kV
Current - Average Rectified (Io)	30A
Voltage - Forward (Vf) (Maximum) at If	1.25V at 30A
Current - Reverse Leakage at Vr	2mA at 1200V
Temperature Range - Operating	-40°C ~ 150°C
Mounting Style	Chassis Mount
Manufacturer Package	Module
Supplier Device Package	Module
Manufacturer Pack Quantity	5
MSL Level	1 (Unlimited)
Win Source Part Number	1221683-ME701203
Manufacturer Homepage	www.pwrx.com
Popularity	Medium
Supply and Demand Status	Limited
Ultra Librarian 3D Model	Ultra Librarian ME701203 CAD Model

Alternative Products

Description

The Powerex Inc. ME701203 is a three-phase diode module used in discrete semiconductor products.

Manufacturer: Powerex Inc.
Type: three-phase diode module
Average Rectified Current: 30A
Peak Reverse Voltage: 1.2kV
Mounting: chassis
Package: module
Operating Temperature: -40°C to 150°C
Status: obsolete
Supply and Demand: limited
Manufacturer Pack Quantity: 5
MSL Level: 1 (Unlimited)
