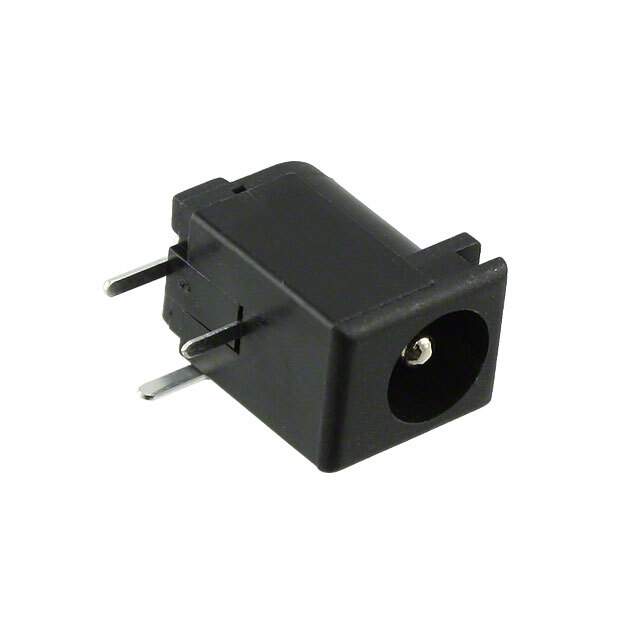

The PJ-102AH connector from CUI Devices is a male jack type connector with a 2 conductor, 3 contact configuration.

• Voltage Rating: 24VDC
• Current Rating: 5A
• Contact Plating: Silver
• Housing Material: Polybutylene terephthalate (PBT)
• Flammability Rating: UL94 V-0
• Operating Temperature Range: -25°C to 85°C
• Mating Diameter: 2.00mm ID (0.079") and 5.50mm OD (0.217")
• Mating Length/Depth: 0.354" (9.00mm)
• Mounting Type: Through hole, right angle
• RoHS Compliant: Yes
• Alternative Parts: 281698-3, 281698-4, and 5-146130-1PJ102AH
