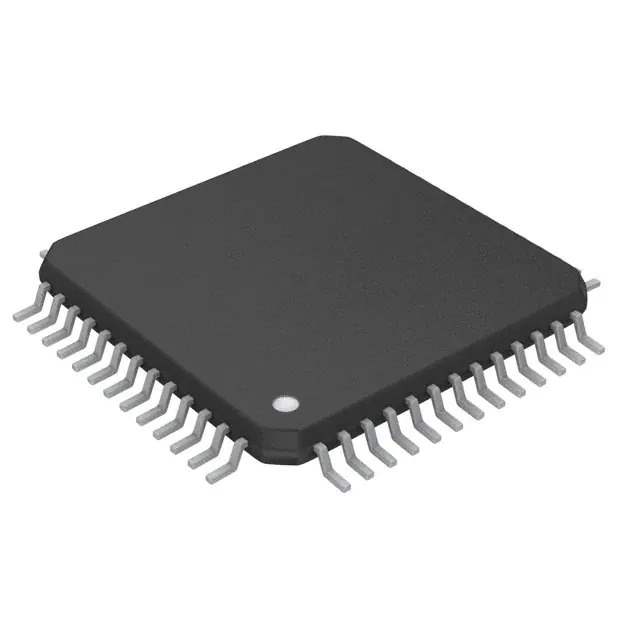

CY7C136AE-55NXI Real Image
Same model may have multiple batches, images only for reference.

CY7C136AE-55NXI

Part No CY7C136AE-55NXI
Manufacturer Cypress Semiconductor Corp
Catalog Memory
Description IC SRAM 16KBIT PARALLEL 52PQFP / SRAM - Dual Port, Asynchronous Memory IC 16Kbit Parallel 55 ns 52-PQFP (10x10)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs) - Memory - Memory
Mfr Cypress Semiconductor Corp
Package Bulk
Product Status Obsolete
Programmable Not Verified
Memory Type Volatile
Memory Format SRAM
Technology SRAM - Dual Port, Asynchronous
Memory Size 16Kbit
Memory Organization 2K x 8
Memory Interface Parallel
Write Cycle Time - Word, Page 55ns
Access Time 55 ns
Voltage - Supply 4.5V ~ 5.5V
Temperature Range - Operating -40°C ~ 85°C (TA)
Mounting Type Surface Mount
Package / Case 52-BQFP
Supplier Device Package 52-PQFP (10x10)
Base Product Number CY7C136
Standard Package 96 pcs
ECCN EAR99
HTSUS 8542.32.0041
Win Source Part Number 867692-CY7C136AE-55NXI
Ultra Librarian 3D Model Ultra Librarian CY7C136AE-55NXI CAD Model

Description

The CY7C136AE-55NXI is a dual-port asynchronous SRAM memory integrated circuit from Cypress Semiconductor Corp.

  • Memory Type: Volatile
  • Memory Size: 16Kbit
  • Access Time: 55ns
  • Voltage Supply: 4.5V to 5.5V
  • Mounting Type: Surface Mount
  • Package: 52-BQFP
  • Operating Temperature: -40°C to 85°C
  • Memory Interface: Parallel
  • Write Cycle Time: 55ns
  • Status: Obsolete
  • ECCN: EAR99.32.0041
