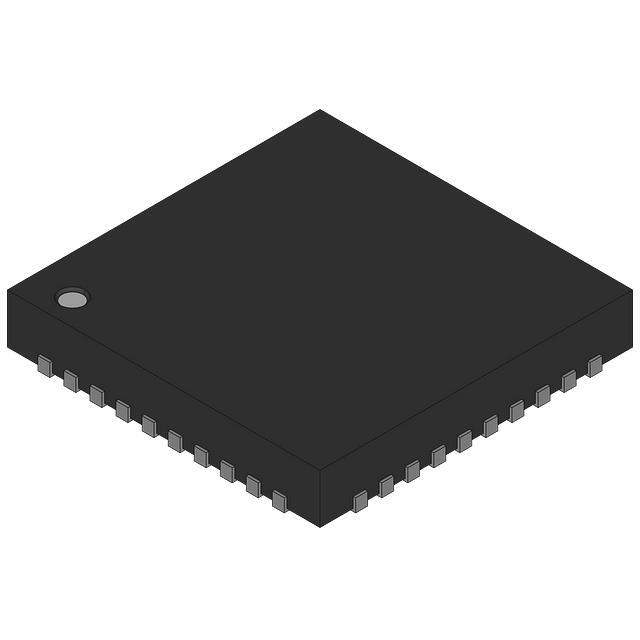

CYRF6936-40LTXC Real Image
Same model may have multiple batches, images only for reference.

CYRF6936-40LTXC

Part No CYRF6936-40LTXC
Manufacturer Cypress Semiconductor Corp
Catalog RF Transceiver ICs
Description IC RF TXRX+MCU ISM>1GHZ 40-VFQFN / RF Transceiver GFSK 2.5V/3.3V 40-Pin QFN EP Tray
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories RF/IF and RFID
Manufacturer Cypress Semiconductor Corp
Packaging Tray
Status Active
Type TxRx + MCU
RF Family/Standard General ISM > 1GHZ
Modulation DSSS, GFSK
Frequency 2.4GHz
Data Rate (Max) 1Mbps
Power - Output 4dBm
Sensitivity -97dBm
Serial Interfaces SPI
GPIO 4
Supply Voltage - Operating 1.8 V to 3.6 V
Current - Receiving 18.4mA to 21.2mA
Current - Transmitting 20.8mA to 34.1mA
Temperature Range - Operating 0°C to 70°C
Dimension 40-VFQFN Exposed Pad
Win Source Part Number 080298-CYRF6936-40LTXC
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Family Name CYRF6936
Introduction Date March 30, 2004
ECCN 5A991.g
Country of Origin Philippines, Taiwan
Halogen Free Compliant
Estimated EOL Date Obsolete / End of life
Ultra Librarian 3D Model Ultra Librarian CYRF6936-40LTXC CAD Model

Description

Overview

The CYRF6936-40LTXC is a high-performance, low-power RF transceiver suited for applications requiring reliable and high-speed wireless data transmission within the 2.4 GHz ISM band.

Features

  • Efficient 2.4 GHz ISM band wireless communication
  • Optimized for power efficiency and high speed
  • Supports various modulation schemes
  • Robust interference rejection capabilities

Applications

  • Consumer electronics
  • Electronic Point of Sale (EPOS) systems
  • Wireless sensor networks
  • Remote metering

Benefits

The CYRF6936-40LTXC provides developers with a flexible solution that supports multiple modulation schemes and high data rates, ensuring adaptability in ever-evolving wireless environments.
