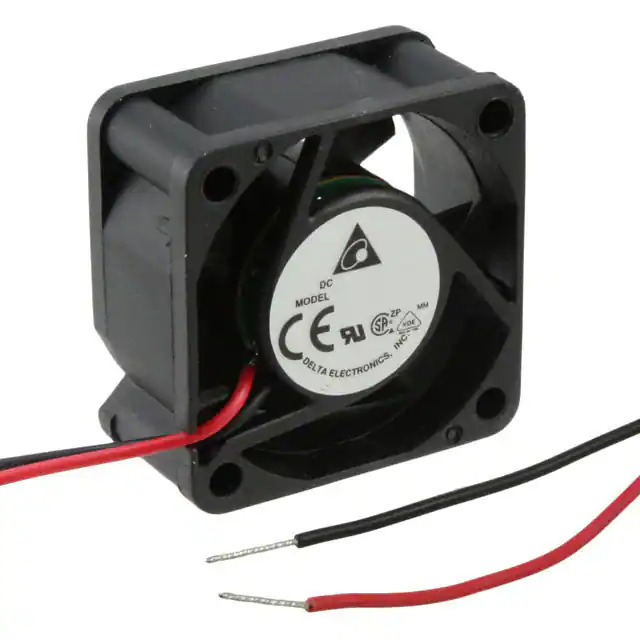

EFB0405MD Delta Electronics
Same model may have multiple batches, images only for reference.

EFB0405MD

Part No EFB0405MD
Manufacturer Delta Electronics
Catalog Fans, Thermal Management
Description FAN AXIAL 40X20MM BALL 5VDC WIRE
Datasheet
EFB0405MD Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Fans, Thermal Management - Fans - DC Brushless Fans (BLDC)
Mfr Delta Electronics
Series EFB
Package Box
Product Status Obsolete
Voltage - Rated 5VDC
Size / Dimension Square - 40mm L x 40mm H
Width 20.00mm
Air Flow 7.2 CFM (0.202m³/min)
Static Pressure 0.218 in H2O (54.3 Pa)
Bearing Type Ball
Fan Type Tubeaxial
Features Locked Rotor Protection
Noise 24.0dB(A)
Power (Watts) 750 mW
RPM 6300 RPM
Termination 2 Wire Leads
Ingress Protection -
Temperature Range - Operating 14 ~ 158°F (-10 ~ 70°C)
Approval Agency CE, CSA, UL, VDE
Weight 0.073 lb (33.11 g)
Current Rating (Amps) 0.150A
Voltage Range 4.5 ~ 5.5VDC
Material - Frame Plastic
Material - Blade Plastic
Lifetime @ Temp. 70000 Hrs @ 40°C
Base Product Number EFB0405
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8414.59.6590
Win Source Part Number 1368451-EFB0405MD
Ultra Librarian 3D Model Ultra Librarian EFB0405MD CAD Model

Description

The Delta Electronics EFB0405MD is a compact DC brushless fan designed for efficient thermal management in electronic devices.

  • Series: EFB
  • Shape: Square
  • Dimensions: 40mm length and 40mm height
  • Rated Voltage: 5VDC
  • Current Rating: 0.150A
  • Power Consumption: 750mW
  • Speed: 6300 RPM
  • Air Flow: 7.2 CFM
  • Static Pressure: 0.218 in H2O
  • Features: Locked rotor protection
  • Bearing Type: Ball bearing
  • Material: Plastic
  • Lifetime: 70000 hours @ 40°C
  • Suitable for: Use in various electronic applications
  • Note: This product is now obsolete and may not be readily available in the market.
