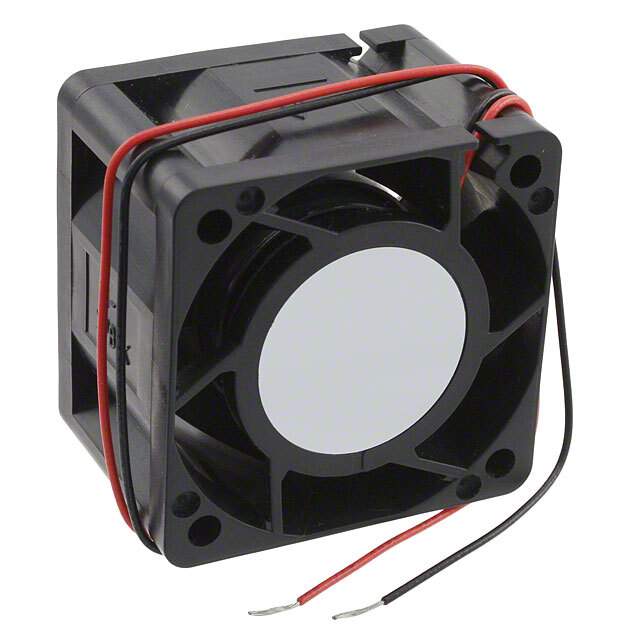

1611RL-04W-B60-B00 Real Image
Same model may have multiple batches, images only for reference.

1611RL-04W-B60-B00

Part No 1611RL-04W-B60-B00
Manufacturer NMB Technologies Corporation
Catalog Fans, Thermal Management
Description FAN AXIAL 40X28MM 12VDC WIRE / Fan Tubeaxial 12VDC Square - 40mm L x 40mm H Ball 13.7 CFM (0.384m³/min) 2 Wire Leads
Datasheet
1611RL-04W-B60-B00 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Fans, Thermal Management - Fans - DC Brushless Fans (BLDC)
Mfr NMB Technologies Corporation
Series 1611RL
Package Bulk
Product Status Obsolete
Voltage - Rated 12VDC
Size / Dimension Square - 40mm L x 40mm H
Width 28.00mm
Air Flow 13.7 CFM (0.384m³/min)
Static Pressure 0.870 in H2O (216.7 Pa)
Bearing Type Ball
Fan Type Tubeaxial
Noise 49.5dB
Power (Watts) 3.24 W
RPM 13000 RPM
Termination 2 Wire Leads
Temperature Range - Operating 14 ~ 158°F (-10 ~ 70°C)
Approval Agency CE, UL, VDE
Weight 0.106 lb (48.08 g)
Current Rating (Amps) 0.270A
Voltage Range 7 ~ 13.2VDC
Material - Frame Plastic
Material - Blade Plastic
Lifetime @ Temp. 80000 Hrs @ 25°C
Standard Package 200
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8414.59.6590
Win Source Part Number 1337660-1611RL-04W-B60-B00
Ultra Librarian 3D Model Ultra Librarian 1611RL-04W-B60-B00 CAD Model

Description

The 1337660-1611RL-04W-B60-B00 electronic component from NMB Technologies Corporation is a DC brushless fan with a tubeaxial design.

  • Shape: Square
  • Dimensions: 40mm L x 40mm H
  • Voltage Range: 7 ~ 13.2VDC
  • Power Consumption: 3.24W
  • Lifetime: 80000 hours @ 25°C
  • Noise Level: 49.5dB
  • Maximum RPM: 13000
  • Material: Plastic
  • Temperature Range: 14 ~ 158°F (-10 ~ 70°C)
